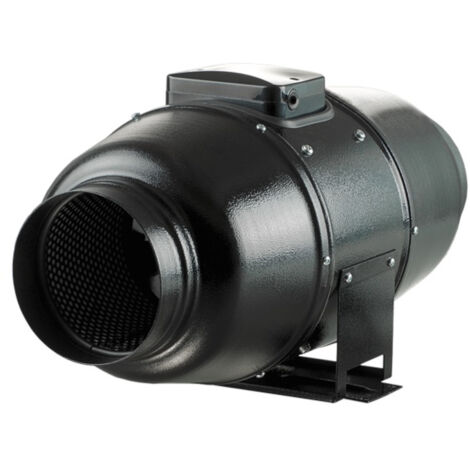

Inline fan TT Silent M 100 V up to 240 m³/h

Name: Inline fan TT Silent M 100 V up to 240 m³/h
Brand: VENTS
SKU: TT Silent M 100 V
Price: 206.95 GBP
Availability: InStock

Sold by creoven

Product information

Description

General description

The Inline fan TT Silent M 100 is designed for efficient ventilation in both residential and commercial properties. It features a powerful airflow rate of up to 240 m³/h while maintaining a low noise level, making it ideal for air extraction in damp rooms.

Technical specifications

Voltage: 220-240 V ~ 50/60 Hz

Housing colour: black

Housing material: powder-coated steel

Insulation: 50mm mineral wool layer for sound and heat insulation

Nominal size: 100 mm

Wattage: 24 / 26 W

Current consumption: 0.1 / 0.11 A

Revolutions per minute: 2030 / 2630

Airflow rate: 170 / 240 m³/h

Sound pressure Lp-3m: 24 / 29 dB(A)

Height: 237 mm

Width: 215 mm

Width of mounting bracket: 243 mm

Length: 505 mm

Diameter of duct connection: 98 mm

Max. temperature for continuous operation: 60°C

IP code: IPX4

Weight: 4.6 kg

Integrated speed control: 2 speeds / off

Motor type: Ball-bearing motor

Mounting options: any position

Usage

This inline fan is ideal for ventilation systems that require high pressure and low noise levels, particularly for air extraction in damp areas such as bathrooms and kitchens.

Features

Brand
VENTS
Height
23.7 cm
Depth
50.5 cm
Weight
4600 g
Material
Steel
