General description

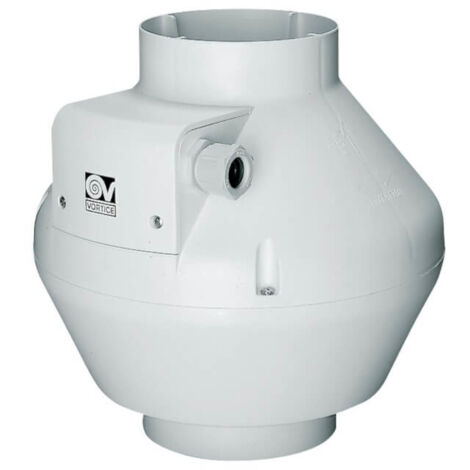

The Inline Fan CA 100 V0 D is a high-performance centrifugal inline fan designed for efficient air extraction in various settings, including homes, commercial spaces, and industrial buildings. With a maximum airflow rate of 251 m³/h, it ensures subtle and effective ventilation.Technical specifications
- Voltage: 220-240 Volt ~ 50/60 Hertz
- Max. wattage: 50 W
- Max. current consumption: 0.22 A
- Max. revolutions per minute: 2400
- Max. airflow rate: 251 m³/h
- Total pressure Pmax: 366 Pa
- Sound pressure level Lp-3m: 56 dB(A)
- Max. temperature: 50°C
- Protection code: IPX4
- Insulation class: II
- Weight: 2.4 kg
- Housing material: self-extinguishing plastic, non-yellowing
- Housing colour: white
- Nominal width: 100 mm
- Thermal overload protection
- Integrated protection grille on the air intake side
Compatibility and accessories
- Optional speed controllers and sensors sold separately
- Mounting options: in walls, ceilings, suspended ceilings (steel sheet mounting brackets included in the delivery)
- Optional accessories available in our shop
Installation
Designed for easy installation, the fan can be mounted in walls, ceilings, or suspended ceilings using the included steel sheet mounting brackets.Usage
This inline fan is ideal for subtle air extraction in various environments, making it suitable for residential, commercial, and industrial applications.Other information
