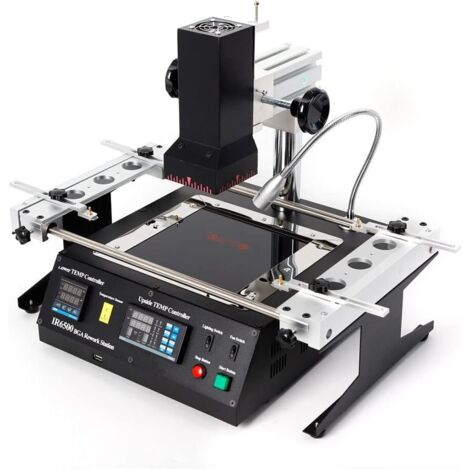

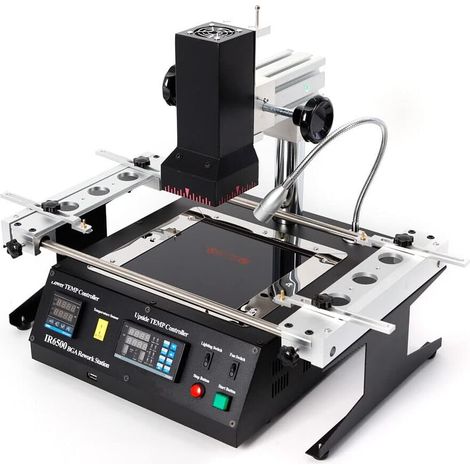

This BGA rework station is a powerful and versatile tool designed for welding, repairing, and removing packaged devices. Made from high-quality aluminum alloy and iron, it ensures durability and longevity. The station features a user-friendly operating panel and can be connected to a computer via USB for enhanced control.
Technical specifications
Color: Black
Style: Modern
Material: Aluminum Alloy, Iron
Heating: IR
Upper Heating Consumption: 400W
Bottom Heating Consumption: 800W
General Power: 1250W
Upper Heating Size: 80*80 mm / 3.15*3.15 in
Bottom Heating Size: 180*180 mm / 7.09*7.09 in
Applicable Chip Size: ≤70*70 mm / 2.76*2.76 in
Applicable PCB Size: ≤400*305 mm / 15.75*12.01 in
Product Size: 47.5*48*42 cm / 18.7*18.9*16.54 in
Power: 220V
Compatibility and accessories
Suitable for laptop motherboards, desktop computer motherboards, server motherboards, industrial computer motherboards, various types of game motherboards, communication equipment motherboards, LCD TVs, and other large circuit boards BGA rework.
Package includes: 1 BGA Rework Station, 1 Power Cord, 1 Sensor Wire, 1 Roll of Tinfoil, 1 USB Cable, 1 English Manual.
Installation
No assembly required.
Usage
Ideal for welding, removing, or repairing package devices such as BGA, PBGA, CSP, multi-layer substrates, and EMI metallic shield products.
Features independent temperature control with high-precision closed-loop control, ensuring precise temperature management during operations.
Other information
LED auxiliary lighting for improved visibility during precision operations.
Cooling fans for effective heat dissipation, preventing overheating.
Adjustable height for the upper heater using the -Y lifting regulator.
Please read the operating manual completely before use, paying particular attention to the safety instructions included.
Note: Allow for slight color differences due to lighting and a 1-3 cm error due to manual measurement.
Features
Brand
CNCEST
Warranty
1 year(s)
Power source
Corded
Material
Iron
Weight
17.07 kg
