John Guest Speedfit 9 Port Manifold Stainless Steel (15mm Connections)

Name: John Guest Speedfit 9 Port Manifold Stainless Steel (15mm Connections)
Brand: JOHN GUEST SPEEDFIT
SKU: 665628065130
Availability: OutOfStock

Product out of stock

Product information

Description

General description

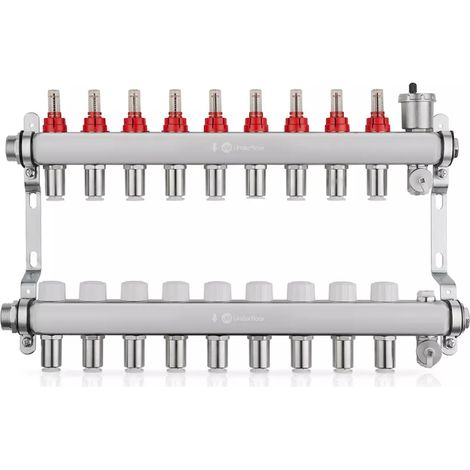

JG Underfloor 9 Port Manifold connects and centralizes underfloor (UFH) pipework in one place and distributes warm water through the pipe circuits to provide even and comfortable heat. When combined with the JG Aura wiring centre and JG Aura heating controls, it offers independent zone control. Made from stainless steel, the manifold is manufactured to the highest standards.

Technical specifications

Material: Stainless steel

Number of ports: 9

Connections: 15mm

Installation

Fast and simple to install with a pre-fitted wall bracket

Includes a vibration isolation mount

Features push-fit connections (JG Speedfit)

Protective dust caps supplied on the return rail

Usage

Suitable for underfloor heating applications only

Adjustable flow rate indicators for flow adjustment and isolating pipe circuits

Compatible with JG Speedfit PEX and polybutylene barrier pipe (inserts required)

Includes screw plugs, pipe inserts (STS), and collet clips

Features

Brand
JOHN GUEST SPEEDFIT
Number of outlets
9
Connection configuration
Male
Fitting shape
Manifold
Material
Stainless steel
For underfloor heating
Yes
ManoMano Reference
ME84957644
MMID
283881143134
Product code
665628065130
EAN
0665628065130
