John Guest Speedfit Lowfit 3 Port Manifold Stainless Steel (12mm Connections)

Product out of stock

Product information

Description

General description

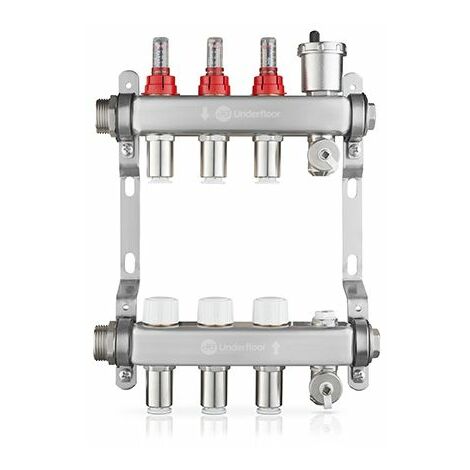

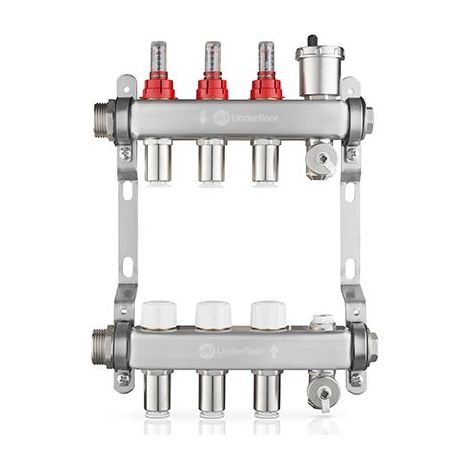

Manufactured to the highest standards, the John Guest Speedfit Lowfit 3 Port Manifold is designed for underfloor heating systems. Made from high-performance stainless steel, it features a range of sizes from 2 to 12 ports, ensuring versatility for various installations. The manifold is equipped with JG Speedfit push-fit connections, allowing for fast and simple installation without the need for additional reducing adaptors.

Technical specifications

  • Material: Stainless Steel
  • Connection Size: 12mm
  • Ports: Available in sizes from 2 to 12
  • Compatibility and accessories

  • Compatible with JG Speedfit PEX and polybutylene barrier pipe (inserts required)
  • Valves on the return manifold are compatible with thermoelectric heads
  • Installation

  • Fast and simple installation using pre-mounted brackets and vibration isolation mount
  • Each manifold is supplied fully assembled with flow and return rails, adjustable flow meters, an automatic air vent, and fill valve
  • Protective dust caps are supplied on the return rail for easy installation of circuit actuator valves
  • Usage

  • Manifolds can be assembled to suit left or right-hand supply
  • Integral Automatic Air Vent discharges air that could impact circulation
  • Rail valves on the return rail allow circuit actuators to be easily connected
  • Features

    • Brand
      JOHN GUEST SPEEDFIT
    • Material
      Stainless steel
    • Connection configuration
      M-M
    • Fitting shape
      Manifold
    • Number of outlets
      3 .
