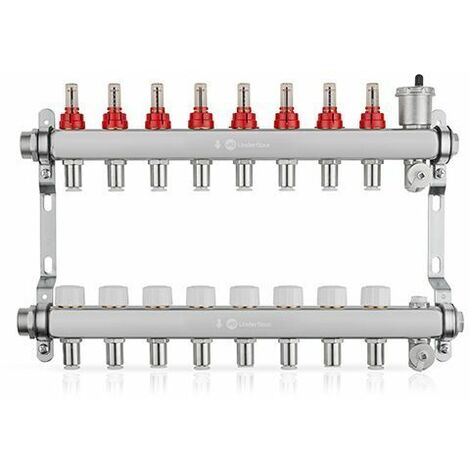

John Guest Speedfit Lowfit 8 Port Manifold Stainless Steel (12mm Connections)

Name: John Guest Speedfit Lowfit 8 Port Manifold Stainless Steel (12mm Connections)
Brand: JOHN GUEST SPEEDFIT
SKU: 665628065000
Price: 105.09 GBP
Availability: InStock

Sold by Trade Hut Direct

Product information

Description

General description

Manufactured to the highest standards, the John Guest Speedfit Lowfit 8 Port Manifold is made from high-performance stainless steel and is designed for underfloor heating systems. This manifold is available in a range of sizes from 2 to 12 ports and features JG Speedfit push-fit connections for fast and simple installation.

Technical specifications

Material: Stainless Steel

Connections: 12mm Speedfit

Ports: 8

Compatibility and accessories

Compatible with JG Speedfit PEX and polybutylene barrier pipe (inserts required)

Valves on the return manifold are compatible with thermoelectric heads

Installation

Fast and simple installation with pre-mounted brackets and vibration isolation mount

Each manifold is supplied fully assembled with flow and return rails, adjustable flow meters, an automatic air vent, and fill valve

Protective dust caps are supplied on the return rail for circuit actuator valve installation

Usage

Manifolds can be assembled for left or right-hand supply

Integral Automatic Air Vent discharges air that could impact circulation

Rail valves on the return rail allow easy connection of circuit actuators

Features

Brand
JOHN GUEST SPEEDFIT
Connection configuration
Male
Length
23 cm
Material
Stainless steel
For underfloor heating
Yes
Pcs per pack
1
ManoMano Reference
ME84957797
MMID
614782387400
Product code
665628065000
EAN
0665628065000
