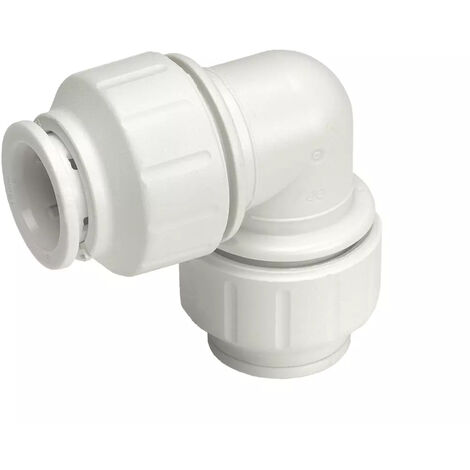

John Guest Speedfit Elbow 15mm PEM0315W

Name: John Guest Speedfit Elbow 15mm PEM0315W
Brand: JOHN GUEST SPEEDFIT
SKU: 5055003858474
Price: 8.58 GBP
Availability: InStock

Sold by Trade Hut Direct

Product information

Description

General description

Connect equally-sized pipes to form a 90° pipe bend quickly and securely with the JG Speedfit 15mm elbow. This fitting can be installed in seconds without the need for tools—simply push it fully onto the pipe and twist the plastic nut clockwise to lock it in place. The Twist & Lock mechanism not only secures the fitting but also adds compression, making it up to 40% faster to install than traditional methods. It is particularly advantageous in confined spaces as there’s no need for hot works or tools. Demounting the connection is equally straightforward; just unlock the nut by hand, push the collet towards the body of the fitting, and pull the pipe to release.

Technical specifications

Brand: JG Speedfit

Colour: White

Material: Plastic

Manufacturer ID: PEM01315W

Warranty: 50 years

Angle: 90°

Diameter: 15 mm

Pack Size: 1

Fitting Type: Elbow

Equal or Reducing: Equal

Minimum operating temperature: 20°C

Maximum operating temperature: 105°C

Maximum operating pressure at minimum temperature: 12 bar

Maximum operating pressure at maximum temperature: 3 bar

Compatibility and accessories

Compatible with Speedfit PEX and polybutylene plastic pipe (inserts required)

Compatible with copper pipe

Other information

Manufactured to BS EN 7291 Parts 1, 2, 3 and S

WRAS-approved

Features

Brand
JOHN GUEST SPEEDFIT
Pcs per pack
1
Suitable for drinking water
Yes
Connection configuration
Male
Colour
White
Pipe thread size
No pipe thread
Shape
Cylindrical
Fitting shape
Elbow 90 \ u00b0
Fitting material
PVC
Coupling type
Straight coupling
Fitting usage
For taps
ManoMano Reference
ME84957532
MMID
847192519711
Product code
5055003858474
EAN
5055003858474
