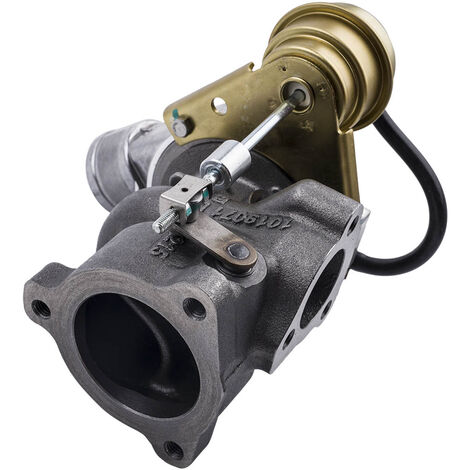

K03 Billet Turbolader for Audi A4 A6 VW PASSAT1.8T 1999 -2004 53039880073

Application:

for Audi A4 A6 Quattro VW PASSAT 1.8T AEB/ANB/APU/AWT Upgrade
for Audi A4 1.8T AEB/ANB/APU/AWT20v/AVJ 1995 - 1999
for Audi A4 Quattro 1.8T AEB/ANB/APU/AWT/AVJ/BEX 1999 -
for Audi A4 Upgrade 1.8T 1995 -
for Audi A6 1.8T AEB/ANB/APU/AWT 1997 - 1999
for Audi A6 Quattro  1.8T AEB/ANB/APU/AWT 1999 -
for VW Passat 1.8T  AEB/ANB/APU/AWT 1999 -
for VW Passat 1.8T  upgrade  1999 -

Interchange Part Number:

53039880005, 53039700005,
53039880013, 53039700013,
53039880029, 53039700029,
53039880025, 53039700025,
53039880073, 53039700073,
058145703L, 058145703LX, 058145703LV,
058145703J, 058145703JX, 058145703JV,
058145703K, 058145703KX, 058145703KV,
058145703N,058145703NX , 058145703NV,
058145703Q, 058145703QX,058145703QV，
058145703B, 058145703C, 058145703D，
058145703E, 058145703H,

Specification:

Compressor :
Wheel Diameter: 50/37.5 mm
Trim: 56
Compressor Inlet: 44.5 mm
Compressor Outlet:  50 mm
Blades: 4 x 4  blades type
Turbine :
Wheel Diameter: 46/42 mm
Trim: 83.7
Blades: 12 blades
Inlet Flange: 3 Bolt Flange
Outlet Flange: 3 Bolt Flange

Turbo Model: k03 upgraded, K03S
Engine: AEB/ANB/APU/AWT/AVJ/BEX
Fuel: Gasoline
Cooling Type: Water & Oil Cooling
Horsepower Rating: up to 220 HP
Bearing Type:  Floating Bearing
Thrust bearings: 270 Degrees
Turbo Type: Individual
Universal Fitment: No
Finish: Polished
Condition: Brand New
Accessories: You will get exactly as shown in the picture above
Package Weight: 5700g
Package Size: 26*24*23cm

Feature

*Product Material
1. Turbine housing: Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance  up  to 1000℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Billet compressor wheel: forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

*Product  Performance
1. K03S upgraded turbine/compressor wheel with higher horsepower.
2. Excellent high temperature resistance, high efficiency and durability
3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2.  G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer

NOTE:

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
