General description

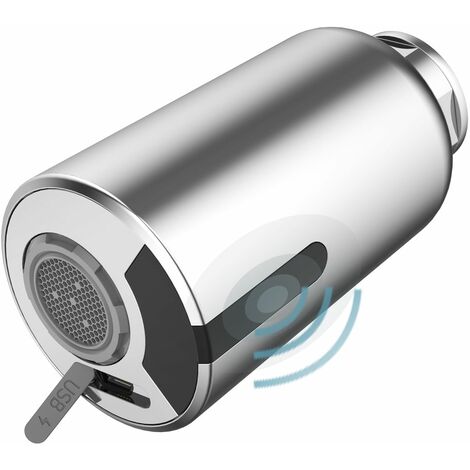

The Kitchen Infrared Sensor is a touchless automatic faucet replacement head designed to enhance convenience and promote water-saving efficiency. With its innovative features, it allows users to operate the faucet without physical contact, reducing the risk of bacterial cross-contamination while ensuring a sustainable water usage experience.
Technical specifications
- Product: Water saving sensor
- Surface: Polished chrome
- Battery capacity: 3.7V lithium battery (400mAh)
- Charging specification: Micro USB charging (5V/500-1000mA)
- Product size: 47 mm x 47 mm x 79 mm
- Power consumption in standby mode: ≤0.2 mW
- Detection range: Side scan 1-6 cm; Floor scan 1-10 cm (manual scan)
- Applicable water pressure: 0.05-0.8 MPa
- Applicable faucet spout: External tooth M24*1 / Internal tooth M22*1
- Ambient temperature: 1-40℃
- Ambient humidity: ≤95% RH
- Water recording efficiency: Class 1
- Waterproof class: IPX6
Compatibility and accessories
- Infrared sensor adapter x1
- M22 to M24 connector x1
- Rubber gasket with filter x1
- Rubber gaskets x3
- Wrench x1
Installation
The installation process is straightforward and does not require additional tools. The faucet comes with a connector and wrench, making it easy to set up. It is specifically designed for flush faucets with a curved high mold. Note that the distance between the original faucet nozzle and the tabletop should be at least 25 cm.
Usage
This sensor faucet features two water delivery modes with a rapid response time of 0.1 seconds, minimizing unnecessary water waste. It includes a built-in flow switch for quick adjustments to water volume, maintaining a flow rate of 0.07 l/s at 1 bar water pressure. Additionally, it has an overflow protection feature that automatically switches the solenoid valve off if water is used for more than 3 minutes, preventing accidents caused by forgetting to turn off the water.
Other information
With a USB rechargeable design, one charge lasts approximately 9 months (around 100,000 cycles). The built-in lithium polymer battery has a low battery protection function to ensure battery health, and the program induction switches off automatically during charging.
