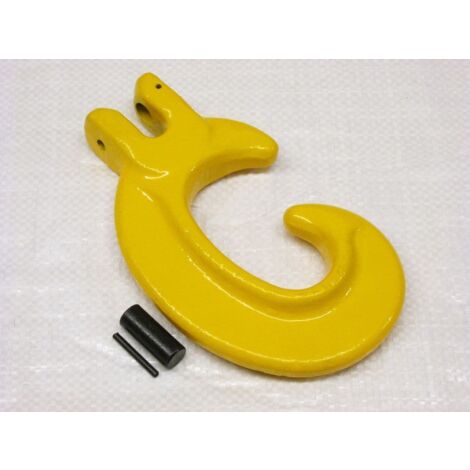

Lifting Clevis C Hook Grade 80 16MM (G80 8 Ton Chain Sling Hoist 8T)

Name: Lifting Clevis C Hook Grade 80 16MM (G80 8 Ton Chain Sling Hoist 8T)
Brand: SECUREFIX DIRECT
SKU: SFYASCCH16
Price: 43.29 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These high-quality Clevis C Hooks are designed for use in the lifting gear industry, specifically for chain slings. They are suitable for general lifting and hoisting purposes, featuring a C shape design that eliminates the need for a safety catch in applications where it is not required.

Technical specifications

Material: Grade 80 (G80)

Chain Size: 16MM

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Product Codes and Specifications:

SFYASCCH07: SWL 2 Tonne, A 89.5 MM, B 29 MM, C 20.5 MM, D 20 MM, E 132 MM, F 9 MM, G 9.5 MM, H 13 MM

SFYASCCH10: SWL 3.15 Tonne, A 125 MM, B 40 MM, C 29 MM, D 28.5 MM, E 185 MM, F 12.5 MM, G 13 MM, H 14 MM

SFYASCCH13: SWL 5.3 Tonne, A 163 MM, B 53 MM, C 39 MM, D 39 MM, E 240 MM, F 16 MM, G 16 MM, H 17 MM

SFYASCCH16: SWL 8 Tonne, A 205 MM, B 59 MM, C 42 MM, D 45 MM, E 295 MM, F 17.5 MM, G 19.5 MM, H 21.5 MM

Other information

Test certificate will be supplied via email

Free delivery available

Features

Brand
SECUREFIX DIRECT
Length
16.3 cm
Width
1.6 cm
Weight
100 g
Material
Steel
