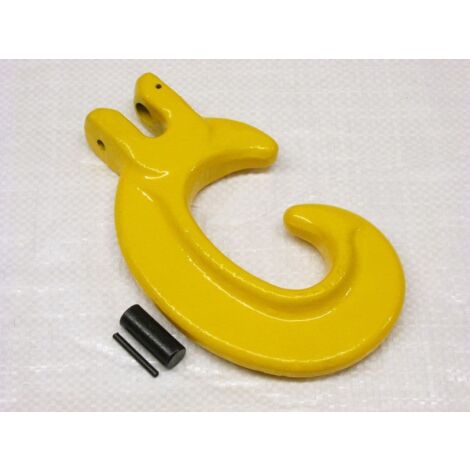

Lifting Clevis C Hook Grade 80 13MM (G80 5.3 Ton Chain Sling Hoist 5.3T)

Name: Lifting Clevis C Hook Grade 80 13MM (G80 5.3 Ton Chain Sling Hoist 5.3T)
Brand: SECUREFIX DIRECT
SKU: SFYASCCH13
Price: 23.72 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These Clevis C Hooks are high-quality lifting gear designed for use in the lifting gear industry, particularly for chain slings. They are suitable for general lifting and hoisting purposes, featuring a C shape design that eliminates the need for a safety catch in applications where it is not required.

Technical specifications

Material: Grade 80 (G80)

Chain Size: 13MM

Finish: Yellow (may vary)

Factor of Safety: 4:1

Conforms to: BS EN 1677

Product Codes and Specifications:

SFYASCCH07: SWL 2T, A 89.5MM, B 29MM, C 20.5MM, D 20MM, E 132MM, F 9MM, G 9.5MM, H 13MM

SFYASCCH10: SWL 3.15T, A 125MM, B 40MM, C 29MM, D 28.5MM, E 185MM, F 12.5MM, G 13MM, H 14MM

SFYASCCH13: SWL 5.3T, A 163MM, B 53MM, C 39MM, D 39MM, E 240MM, F 16MM, G 16MM, H 17MM

SFYASCCH16: SWL 8T, A 205MM, B 59MM, C 42MM, D 45MM, E 295MM, F 17.5MM, G 19.5MM, H 21.5MM

Other information

Test Certificate will be supplied via email

Free delivery available

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Material
Two-material
Colour
Yellow
Maximum load
5300 kg
