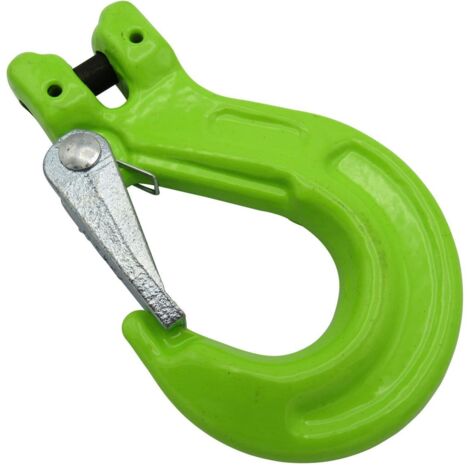

Lifting Clevis Sling Hook with Latch 10MM (Grade 100 4 Ton Chain Component 4T)

Name: Lifting Clevis Sling Hook with Latch 10MM (Grade 100 4 Ton Chain Component 4T)
Brand: SECUREFIX DIRECT
SKU: SFG10CSH10
Price: 19.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Clevis Sling Hook with Safety Catch is a high-quality lifting component designed for use in the lifting gear industry, particularly with chain slings. This hook features a safety catch for enhanced security during lifting operations.

Technical specifications

Material: Grade 100 (G100)

Chain Size: 10MM

Finish: Light Green (Colour May Vary)

Factor of Safety: 4:1

Conforms to: ASTM A952

Product Codes and Specifications:

Product Code: SFG10CSH06 - SWL: 1.5 Tonne, A: 71.5 MM, B: 21.5 MM, C: 16.5 MM, D: 22 MM, E: 107 MM, F: 7 MM, G: 7 MM, H: 8 MM

Product Code: SFG10CSH08 - SWL: 2.5 Tonne, A: 86.5 MM, B: 29 MM, C: 19 MM, D: 26.5 MM, E: 130 MM, F: 9 MM, G: 9.5 MM, H: 10 MM

Product Code: SFG10CSH10 - SWL: 4 Tonne, A: 103.5 MM, B: 36 MM, C: 26 MM, D: 29.5 MM, E: 160 MM, F: 11 MM, G: 13 MM, H: 12 MM

Product Code: SFG10CSH13 - SWL: 6.7 Tonne, A: 129.5 MM, B: 45 MM, C: 33 MM, D: 41 MM, E: 200 MM, F: 15.5 MM, G: 15.5 MM, H: 16 MM

Product Code: SFG10CSH16 - SWL: 10 Tonne, A: 170 MM, B: 51.5 MM, C: 39.5 MM, D: 82 MM, E: 250 MM, F: 18.5 MM, G: 19.5 MM, H: 22 MM

Other information

Test Certificate will be supplied via email

Free delivery available

Features

Brand
SECUREFIX DIRECT
Colour
Light green
Warranty
1 year(s)
Pcs per pack
1
Maximum load
4000 kg
Material
Two-material
Weight
100 g
ManoMano Reference
ME27134195
MMID
515019367240
Product code
SFG10CSH10
EAN
0600988487505
