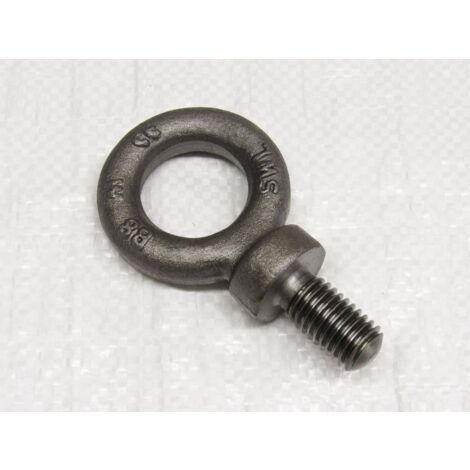

M12 0.32 Ton Self Colour Dynamo Eyebolt - 320KG Metric Eye Bolt BS4278

Name: M12 0.32 Ton Self Colour Dynamo Eyebolt - 320KG Metric Eye Bolt BS4278
Brand: SECUREFIX DIRECT
SKU: SFMDE312
Price: 6.5 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by SecureFix Direct

Product information

Description

General description

The M12 0.32 Ton Self Colour Dynamo Eyebolt is designed for various lifting applications. These eyebolts are widely used in the lifting industry due to their reliability and performance. They are tested and certified for lifting, ensuring safety and efficiency during use. It is important to note that these eyebolts should only be used for straight lifts and operated by a competent person.

Technical specifications

Thread Diameter: M12

Finish: Self Colour

Working Load Limit (SWL): 0.32 Ton

Product Code: SFMDE312

Dimensions:

A (MM): 17.3

B (MM): 40

C (MM): 21.7

D (MM): 12

E (MM): 8.4

F (MM): 27.4

G (MM): 14.3

H (MM): 17.7

Pitch: 1.75

Other information

Test certificate included (sent via email).

Features

Brand
SECUREFIX DIRECT
Maximum load
320 kg
Pcs per pack
1
Weight
100 g
Material
Two-material
Corrosion resistant
Yes
Hook type
Screw eye
ManoMano Reference
ME27129096
MMID
209903026719
Product code
SFMDE312
EAN
600988494398
