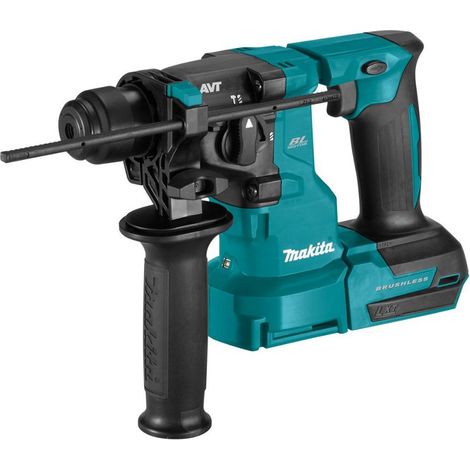

Makita DHR183Z 18V LXT Cordless Brushless SDS Rotary Hammer Drill 18mm

Name: Makita DHR183Z 18V LXT Cordless Brushless SDS Rotary Hammer Drill 18mm
Brand: MAKITA
SKU: DHR183Z
Availability: OutOfStock
Rating: 5 (1 reviews)

Product out of stock

Product information

Description

General description

The Makita DHR183Z 18V LXT Cordless Brushless SDS Rotary Hammer Drill is designed for high efficiency and versatility in various applications. It features a compact and lightweight design, utilizing the same hammering mechanism as the DHR171, achieving superior operation efficiency while minimizing size and weight. The drill offers a trigger-lock function, SDS-Plus shank compatibility, and two operation modes: rotation only and rotation with hammering. Additionally, it incorporates AVT (Anti-Vibration Technology) for enhanced user comfort.

Technical specifications

Voltage: 18V

Capacity in Concrete: 18 mm

Capacity in Steel: 13 mm

Capacity in Wood: 24 mm

No Load Speed: 0 - 1,100 rpm

Blows Per Minute: 0 - 5,000 bpm

Impact Energy: 1.7 J

Net Weight: 2.1 - 2.9 Kg

Vibration: 7.5 m/s²

Vibration K Factor: 1.5 m/s²

Sound Pressure Level: 90 dB(A)

Sound Power Level: 101 dB(A)

Sound K Factor: 3 dB(A)

Compatibility and accessories

Supplied as body only; batteries and chargers sold separately

Compatible with SDS-Plus shank

Tool-less bit change

Dust collection (forced dust collection)

Filter cleaning mechanism for DX16 (DX16 sold separately)

HEPA filter for DX16 (DX16 sold separately)

Installation

Includes depth stop

Includes side handle

Usage

Ideal for drilling in concrete, steel, and wood

Variable speed control by trigger

Constant speed control

Electric brake

LED job light with preglow and afterglow functions

Features

Brand
MAKITA
Power
500 W
Power source
Cordless
With integrated lighting
No
Safety clutch
No
Max drilling diameter in concrete
18 mm
Max. diameter for drilling wood
24 mm
Max diameter for metal drilling
13 mm
Chiselling function
No
Drilling capability
Yes
Hammer function
Yes
Strike force
1.7 J
Frequency of use
Professional
Height
21.5 cm
Charger included
Without charger
Width
10 cm
Length
28.8 cm
Material
Concrete
Number of chisels included
1
Weight
2.1 kg
Presence of vibration damping
Yes
Battery technology
Li-ion
Voltage
18 V
Chuck
SDS plus
Insertion type
SDS
Type of electric motor
Brushless
Sold as a set
No
ManoMano Reference
ME78854125
MMID
383754057829
Product code
DHR183Z
