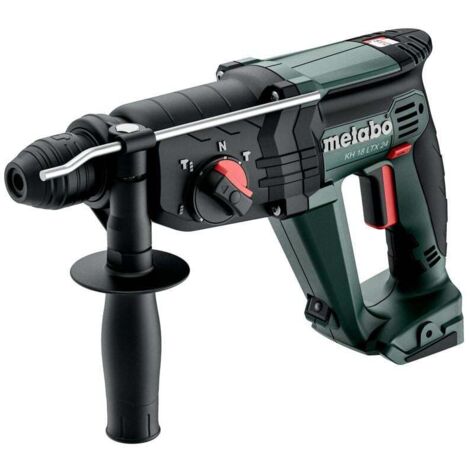

Metabo KH18LTX 24 SDS+ Rotary Hammer Drill Body Only With metaBOX

£199.00

Often purchased together

Product information

Description

General description

The Metabo KH 18 LTX 24 is a powerful SDS+ cordless hammer drill designed for versatility and efficiency. It features an attachment point for tool safety straps, making it ideal for work at great heights. The drill is equipped with an electronic soft start for precise spot-drilling and offers dust-free drilling with external dust extraction (ESA plus). It combines three functions: hammer drilling, drilling, and chiselling, allowing for customized speed settings to suit various materials.

Technical specifications

  • Voltage: 18 V
  • Single Blow Energy (EPTA): 2.1 J
  • Maximum Impact Rate: 5200 /min
  • Drill Capacity in Concrete (with Hammer Bits): 24 mm
  • Drill Capacity in Masonry (with Core Bits): 68 mm
  • Drill Capacity in Steel: 13 mm
  • Drill Capacity in Soft Wood: 30 mm
  • No-Load Speed: 0 - 1400 /min
  • Bit Retainer: SDS-plus
  • Weight (without battery): 2.6 kg
  • Sound Pressure Level: 91 dB(A)
  • Sound Power Level (LwA): 98 dB(A)
  • Vibration Hammer Drilling Concrete: 11.5 m/s²
  • Vibration Chiseling: 7.85 m/s²
  • Compatibility and accessories

  • Compatible with all 18V battery packs and chargers of the CAS brands
  • Standard Equipment: 1x KH 18 LTX 24 SDS+ Hammer Drill, 1x Drilling Depth Guide, 1x Side Handle, 1x MetaBOX 165 L Carry Case
  • Other information

  • Safety clutch for mechanical decoupling of the drive
  • LED work light for optimum visibility of the drilling site
  • Features

    • Brand
      METABO
    • Power
      6 W
    • Environmental certification
      NF Environment
    • Origin
      Made in Germany
    • Power source
      Cordless
    • With integrated lighting
      Yes
    • Battery capacity
      5 Ah
    • Safety clutch
      Yes
    • Max drilling diameter in concrete
      24 mm
    • Max. diameter for drilling wood
      30 mm
    • Max diameter for metal drilling
      13 mm
    • Availability of spare parts
      0 year(s)
    • Chiselling function
      Yes
    • Drilling capability
      Yes
    • Hammer function
      Yes
    • Strike force
      2.1 J
    • Frequency of use
      Professional
    • Height
      14 cm
    • Charger included
      Without charger
    • Width
      28.6 cm
    • Length
      49 cm
    • Material
      Metal
    • Operating Mode
      Electric
    • Weight
      2.6 kg
    • Presence of vibration damping
      Yes
    • Noise level
      91 dB
    • Battery technology
      Li-ion
    • Voltage
      18 V
    • Chuck
      SDS plus
    • Insertion type
      SDS plus
    • Sold as a set
      Yes
    • ManoMano Reference
      ME53189579
    • MMID
      805321282816
    • Product code
      601712840-DA_never_used
    • EAN
      4061792218239
