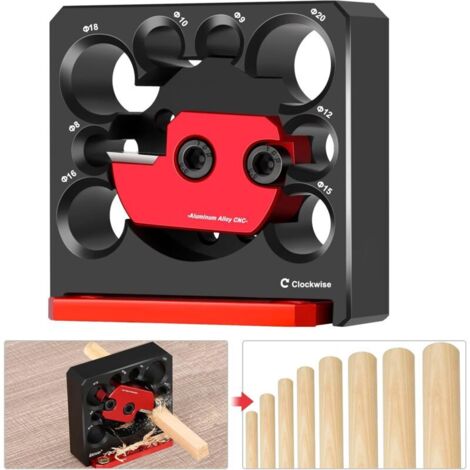

Metric dowel jig kit 8mm to 20mm with carbide blade. Electric drill, dowel milling, round rod, auxiliary tool for wooden dowels and sticks. Woodworking.
Of which environmental contribution £0.01 including VAT.
Sold by LinzGain Sarl
You may also like
Compare with similar items
Product information
Description
- [High-Quality Material] This dowel panel is made of high-quality aluminum alloy, strong and durable, and the surface is anodized, which is not easy to rust and can be used for a long time.
- [8-Hole Design] This dowel machine has 8 holes of different diameters: 8mm, 9mm, 10mm, 12mm, 15mm, 16mm, 18mm, 20mm, to meet your various work needs.
- 【Convenient】: Our electric drill wave dowel machine adopts carbide blades, which can easily and quickly make pins and dowels, greatly improving efficiency. [Easy to use] Loosen the screw, rotate the red blade holder to the desired diameter, tighten the screw to begin drilling. The included blades can also be used in interchangeable positions for easy convenience. Included dowel drill attachment tool: 1 high-speed carbide dowel drill, 1 blade wrench, 1 adjusting wrench, 3 adjusting screws.
Package List
- 1xstud making template
- 1xblade wrench
- 1xadjusting wrench
- 3xfixed screws
specification
- Item Type: Jig for dowel manufacturer
- Material: Aluminum alloy
- Color: Black and red
- Round Hole Sizes: Dia. 8mm/0.31in, Dia. 9mm/0.35in, Dia. 10mm/0.39in, Dia. 12mm/0.47in, Dia. 15mm/0.59in, Dia. 16mm/0.63in, Dia. 18mm/0.71in, Dia. 20mm/0.79in
- Surface Finish: Anodized
- Blade Material: Carbide Blade
The sharp alloy cutting blades are available on all four sides, with one side blunt and the other side replaced, lasting 4 times their lifespan.
Easy to install, comes with installation screws.
Small error in rod size, what you see is what you get.
Prepare blocks of wood of appropriate thickness.
Evenly sharpen one end of the block of wood to fit in the electric drill. Try to maintain a high degree of concentricity.
Install the cut block of wood onto the electric drill bit and lock it securely.
Align the block of wood with the required size of the round hole, start the electric drill, push slowly forward, and unscrew the round hole.
