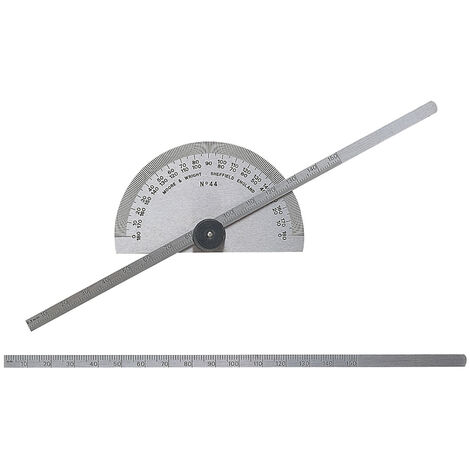

Moore & Wright MAW44 Protractor-Type Depth Gauge with Metric and Imperial Measurement, 0-6 Inches

Description

• This is a protractor type depth gauge designed for precise measurement of depths and angles. It features a full-range rule adjustment with locknut fixation, allowing for accurate and stable readings. The protractor plate is graduated from 0° to 180° and back to 0°, with a scale resolution of 1/2°. Suitable for various DIY and home improvement tasks requiring accurate depth and angle measurements.

Specifications

• Size of base: 79mm (3.11 inches)
• Width: 5.5mm (0.22 inches)
• Thickness: 1.0mm (0.04 inches)
• Blade length: 195mm (7.68 inches)
• Scale graduations: Front face 1/32nd, rear face 1.0mm
• Protractor plate graduated from 0° to 180° and back to 0°
• Scale resolution: 1/2°

Compatibility and Accessories

• Includes: Protractor
• Part number: MAW44

Installation

• Adjust the rule to the desired measurement and fix it using the locknut for stability during use.
• Position the protractor on the workpiece to measure angles or depths accurately.

Usage

• Use the full-range rule to measure depths or distances.
• Align the protractor plate to measure angles from 0° to 180°.
• Fix the rule in place with the locknut for consistent measurements.

Other Information

• Designed for precise depth and angle measurements in DIY, woodworking, and home improvement projects.
