General description

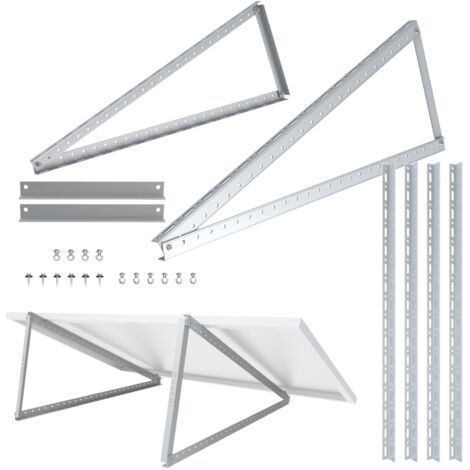

NuaFix offers a versatile solution for mounting solar panels with its triangular brackets designed for flat roofs. These adjustable brackets allow for a tilt angle between 0-90°, ensuring optimal solar energy capture. Made from durable materials, they are suitable for various installations, including garages, gardens, and balconies.Technical specifications
- Dimensions long strut (WxDxH): 28 x 42 x 3 mm
- Length long strut: 1050 mm
- Length cross brace: 365 mm
- Dimensions cross strut (WxDxH): 28 x 32 x 3 mm
- Max. solar module width: 1050 mm
- Material thickness: 3 mm
- Dimensions of fixing holes for long strut: 9 mm / 36 x 9 mm
- Material bracket: Aluminium AL6005-T5
- Material bolts & nuts: Stainless steel SUS304
- Angle: 0-90°
- Weight: 2.49 kg
Compatibility and accessories
- Scope of delivery: 8x long struts, 4x short struts, 2x screw set
Installation
The NuaFix brackets are designed for easy attachment to solar panels, allowing for quick installation on flat surfaces.
Usage
These adjustable brackets are ideal for maximizing solar energy yield by allowing users to set the optimal tilt angle for their solar panels.
