General description

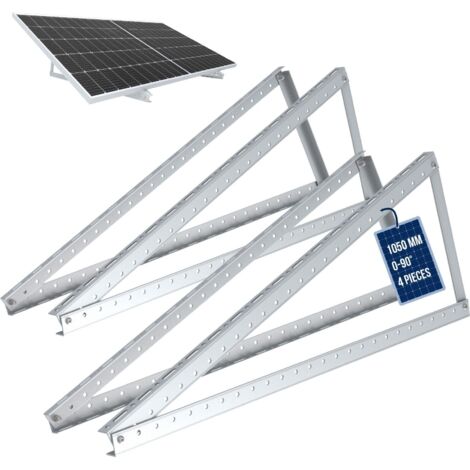

NuaSol Bracket for solar panel elevation is designed for flat roof PV solar modules, allowing for adjustable tilt angles from 0 to 90 degrees. Made from durable AL6005-T5 aluminum, these weather-resistant brackets ensure a reliable installation for your solar system, whether on garages, gardens, or balconies. The package includes SUS304 stainless steel bolts and nuts for secure attachment.Technical specifications
- Dimensions long strut (WxDxH): 28 x 42 x 3 mm
- Length long strut: 1050 mm
- Dimensions cross strut (WxDxH): 28 x 32 x 3 mm
- Length of cross brace: 365 mm
- Max. solar module width: 1050 mm
- Material thickness: 3 mm
- Dimensions of fixing holes for long strut: 9 mm / 36 x 9 mm
- Weight: 2.49 kg
Compatibility and accessories
- Material bracket: Aluminium AL6005-T5
- Material bolts & nuts: Stainless steel SUS304
- Scope of delivery: 8x long struts, 4x short struts, 2x screw set
Installation
The adjustable brackets are easy to attach to the solar panel, ensuring a quick setup for your solar system.
Usage
These brackets are suitable for installations on flat surfaces, allowing for convenient adjustment of the tilt angle to maximize solar energy yield.
