General description

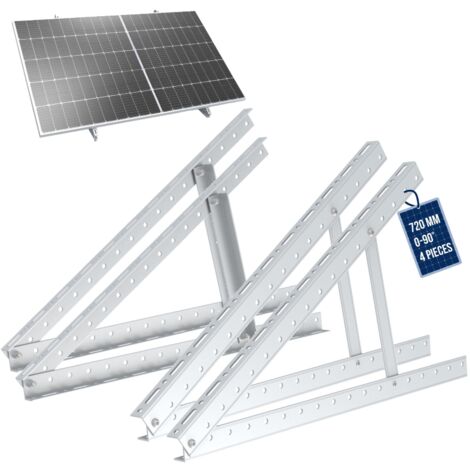

NuaSol Bracket for solar panel elevation is designed for flat roof PV solar modules, providing adjustable mounting solutions for optimal solar energy capture. The NuaFix system includes triangular brackets that allow for a tilt angle adjustment from 0 to 90 degrees, making it suitable for various installations such as garages, gardens, and balconies.Technical specifications
- Dimensions long strut (WxDxH): 28 x 42 x 3 mm
- Length long strut: 720 mm
- Length cross brace: 305 mm
- Dimensions cross strut (WxDxH): 28 x 32 x 3 mm
- Max. solar module width: 720 mm
- Material thickness: 3 mm
- Dimensions of fixing holes for long strut: 9 mm / 36 x 9 mm
- Weight: 1.85 kg
Compatibility and accessories
- Material bracket: Aluminium AL6005-T5
- Material bolts & nuts: Stainless steel SUS304
- Scope of delivery: 8x long struts, 4x short struts, 2x screw set
Installation
The adjustable brackets are designed for easy attachment to solar panels, ensuring a quick setup for your solar system.Usage
These brackets are ideal for mounting solar panels on flat surfaces, allowing for convenient adjustment of the tilt angle to maximize solar energy yield.Other information
