General description

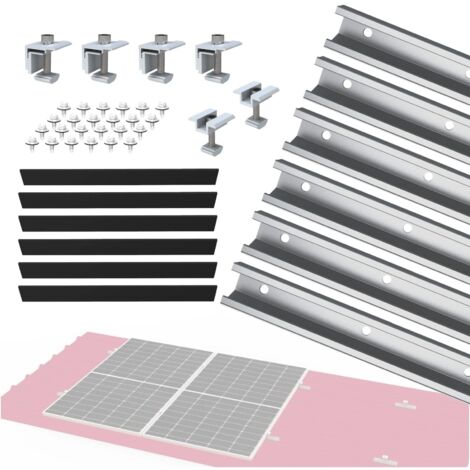

The NuaSol photovoltaic trapezoidal sheet metal roof mounting set is designed for the secure installation of 2 solar modules. This comprehensive kit includes all necessary components for easy and efficient mounting on trapezoidal sheet metal roofs, making it suitable for various solar panel types.Technical specifications
- Profile dimensions: 200 x 28.4 x 27 mm
- Profile material: Aluminium, AL6005-T5
- Profile thickness: 1.5 mm
- Screw dimensions: 5.5 x 25 mm
- Screw material: SUS410
- End clamp dimensions: 38 x 35 x 58 mm
- End clamp material: AL6005-T5 + SUS304
- Centre clamp dimensions: 43 x 38 x 49 mm
- Centre clamp material: AL6005-T5 + SUS304
- Compatible with module heights: 30 & 35 mm
- Wind load max: 30 m/s
- Snow load max: 1.7 KN/m²
- Load capacity m² max: 1.7 KN/m²
Compatibility and accessories
This mounting set is compatible with solar modules that have a height of 30 mm and 35 mm, making it versatile for most common solar panels.Installation
- Attach short profiles
- Attach end clamps & centre clamps to the profile
- Insert solar modules
- Tighten end clamps & centre clamps
Usage

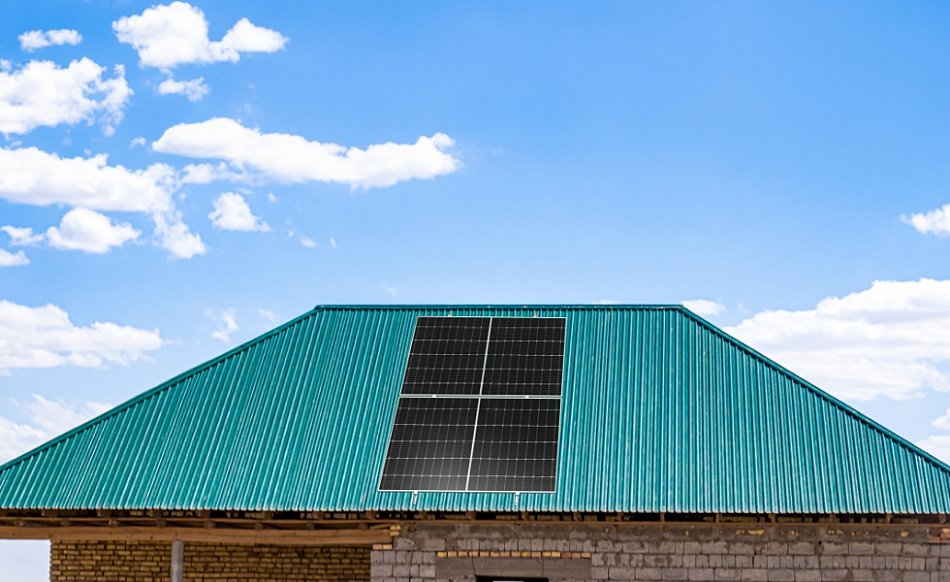

This mounting set is designed for the installation of solar modules on trapezoidal sheet metal roofs, providing a secure and stable platform for solar energy generation.Other information
