General description

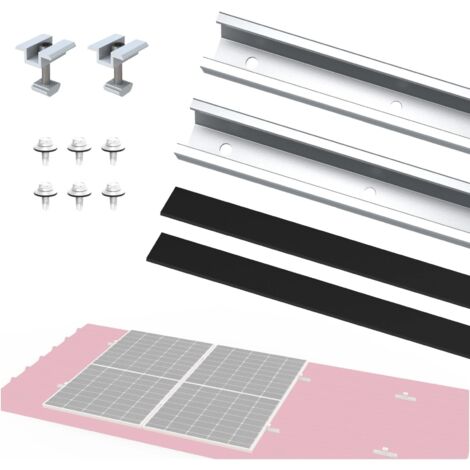

This NuaSol photovoltaic trapezoidal sheet metal roof mounting set extension allows for convenient and uncomplicated mounting of solar modules on trapezoidal roofs. It is designed to accommodate solar panels with a height of 30 mm and 35 mm, making it compatible with all common solar panels of these dimensions.Technical specifications
- Profile dimensions: 200 x 28.4 x 27 mm
- Profile material: Aluminium, AL6005-T5
- Profile thickness: 1.5 mm
- Screw dimensions: 5.5 x 25 mm
- Screw material: SUS410
- Centre clamp dimensions: 43 x 38 x 49 mm
- Centre clamp material: AL6005-T5 + SUS304
- Centre clamp compatible with module height: 30 & 35 mm
- Wind load max: 30 m/s
- Snow load max: 1.7 KN/m²
- Load capacity m² max: 1.7 KN/m²
Installation
- Attach short profiles
- Attach clamps to the profile
- Position solar modules
- Tighten clamps
Usage
- Prepare profiles
- Hook in solar modules
- Tighten centre clamps
