General description

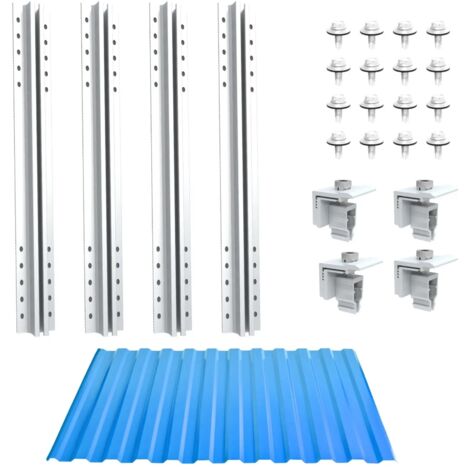

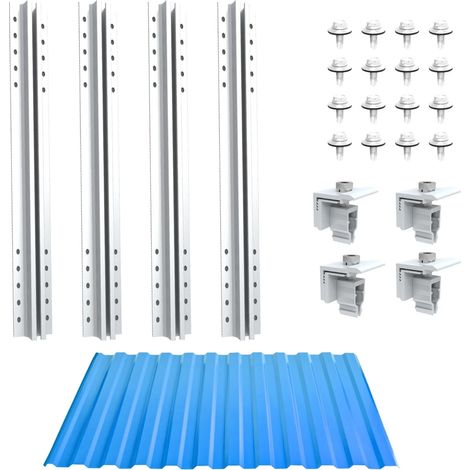

NuaSol offers a trapezoidal sheet metal roof mounting set designed for the installation of one solar module. This kit includes all necessary components for a straightforward and efficient setup, making it suitable for DIY enthusiasts and professionals alike.Technical specifications
- Profile dimensions: 400 x 75 x 26.5 mm
- Profile material: Aluminium, AL6005-T5
- Profile thickness: 1.5 mm
- Screw dimensions: 5.5 x 25 mm
- Screw material: SUS410
- End clamp dimensions: 70 x 35 x 54.3 mm
- End clamp material: AL6005-T5 + SUS304
- Compatible with module height: 30 & 35 mm
- Wind load max: 30 m/s
- Snow load max: 1.7 KN/m²
- Load capacity m² max: 1.7 KN/m²
Installation
- Attach short profiles
- Attach end clamps to the ends of the profile
- Insert modules
- Tighten the end clamps
Usage
- Designed for mounting solar modules on trapezoidal sheet metal roofs
- Compatible with solar modules of height 30 mm and 35 mm
Other information
