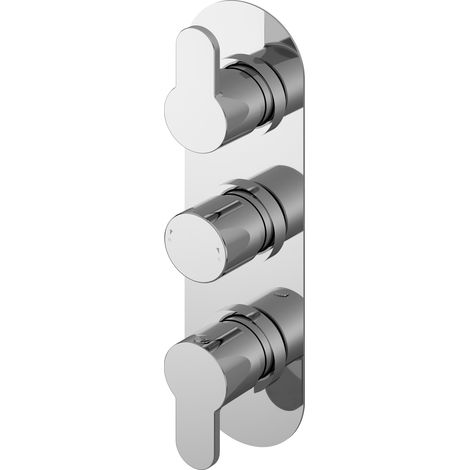

Nuie Arvan Chrome Triple Concealed Thermostatic Shower Valve with Diverter - ARVTR03
Sold by Heat & Plumb and 1 other seller
You may also like
Compare with similar items
Often purchased together
Product information
Description
Features and Benefits:
- Shower valve supplies water to 3 outlets
- Manufactured from solid brass
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Made in Britain
- Stain Rust Resistant
- Thermostatic control to +/- 2 degrees even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressures
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180 degree and replace
- TMV2 Approved
- During installation extra care must be taken to avoid damaging the fittings
- Guarantee : 5 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information
| Shower Type | Thermostatic |
|---|---|
| Shower Valve Controls | 3 |
| Shower Valve Position | Concealed |
| Valve Shape | Oval |
| Handle Type | Knob/Lever |
| Shower Valve Outlets | 3 |
| Minimum Pressure | 0.5 Bar |
| Shower Valve Height | 280mm |
| Shower Valve Width | 80mm |
| Shower Valve Depth | 135mm |
| Inlet Connection Size | 3/4 BSP |
| Outlet Connection Size | 3/4 BSP |
| Material | Brass/ABS |
| Colour | Chrome |
| Brand | Nuie |
| Collection | Arvan |
| Style | Modern |
| Market | Domestic |
| Weight | 3.5 Kg |
| WRAS Approved | Yes |
| WRAS Approval Number | 250602040 |
| TMV2 Approved | Yes |
| TMV2 Approval Number | 2603035 |
| EAN Barcode | 5056211898702 |
| Manufacturer Part Number(s) | ARVTR03 |
| Flow Rate @ 0.5 Bar | 13 l/min |
| Flow Rate @ 1.0 Bar | 17 l/min |
| Flow Rate @ 2.0 Bar | 24 l/min |
| Flow Rate @ 3.0 Bar | 27 l/min |
Features
- BrandNUIE
- ColourGrey
- MaterialBrass
- Max. flow rate27 l/min
- Intended use of the tapShower
- ShapeRounded
- Height28 cm
- Tap activation mechanismMechanical
- Weight5 kg
- Pressure3 bar
- Concealed tapYes
- 38°C SafetyYes
- Type of installation methodFreestanding
- Tap typeSingle-lever mixer
- Installation typeFreestanding
- ManoMano ReferenceME36734759
- MMID117221425432
- Product codeARVTR03
- EAN5056211898702
