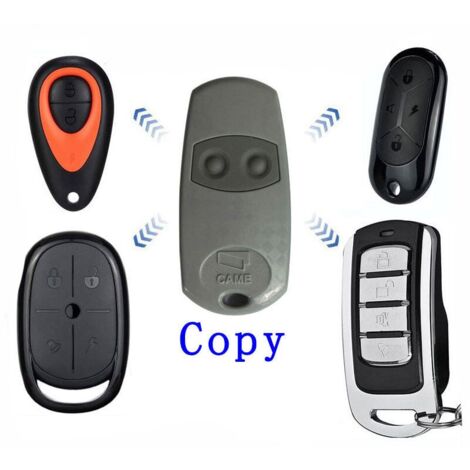

This Original Came TOP432EE remote control operates at a fixed code frequency of 433.92 MHz, designed specifically for garage doors. It allows you to open doors without leaving your vehicle, enhancing convenience in your daily life. The remote control boasts a transmission distance of 50 to 100 meters in open spaces, making it a practical choice for various applications.
Technical specifications
Operating frequency: 433.92 MHz
Transmission distance: 50 to 100 meters (open space)
Power supply: DC 12V
Battery type: 2 button batteries
Number of channels: 2
Number of keys: 2
Modulation method: ASK
Transmit power: 3~6 dBm
Emission current: ≤21 mA
Quiescent current: < 0.15 µA

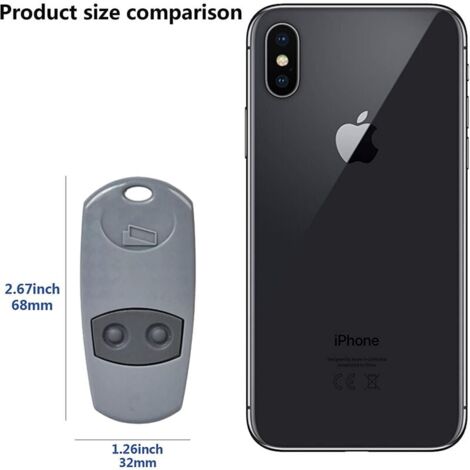

Product size: 68 x 33 x 11 mm
Product weight: 18 g
Range of use: up to 150 meters
Case material: ABS
Usage
The remote control can be used for various applications, including:
Electric garage doors
Passage doors
Security monitoring systems
Remote control for motorcycles and electric vehicles
Home automation for light fixtures, projection curtains, and electric doors/windows
Agricultural applications such as cranes, sprayers, and pumps
