Connection Terminals, 60 Clamps Electrical Connector with Operating Lever,Compact Automatic Electrical Connection Terminal,20 Clamps 2 Way,30 Clamps 3 Way,10 Clamps 5 Way

Safe and reliable material: These automatic connection terminals are made of insulating and flame retardant materials. The clamps are corrosion-resistant, aging-resistant and reusable. The inner conductor material is nickel-plated copper, has good high conductivity .Safe and reliable.

Easy to use: No tools required. First strip the cable sheath 9-10mm, Lift the lever to 90°, insert the wire , then press the lever. Each clamp has a test hole, An electric pen can be used to check whether the terminal is powered. Which makes it convenient for testing and maintenance.

Universal connectors: These connection terminals are suitable for 0.08-2.5mm2 solid and twisted conductors and 0.08-4mm2 flexible conductors.2 holes, 3 holes, 5 holes meet different types, which is very convenient, meet your needs different.

Wide applications: These compact connection terminals are ideal for the construction of cables connected in parallel. They can be used in the home and the workshop. Ideal for lighting systems, building cables, communication systems and security alert systems.

Package Included: These wire connector set have total of 60 clips , 20 2-way clamps, 30 3-way clamps, 10 5-way clamps.

Specifications:

Material: Nylon PA6.6 flame retardant insulation materials

Inner conductor material: nickel-plated copper

Rated voltage: 250V

Rated surge voltage: 4KV

Rated current: 32A

Cross section (solid and stranded conductors): 0.08 - 2.5 mm2

Cross section (flexible conductors): 0.08 - 4 mm2

Strip length: 9 - 10 mm

Wide Application: These compact terminal blocks are ideal for building cables connected in parallel. Perfect for home, workshop, lighting systems, building cables, communication systems and security alert systems.

How to use:

1. Strip the cable jacket 9 -10 mm.

2. Lift the lever 90°.

3. Insert the wires.

4. Push the lever down to close the clamps.

Safety advice:

1. Turn off the power supply before installation so that the cables are de-energized.

2. Since the copper spring is very elastic, it should be avoided that it catches your fingers when opening and closing the orange lever switch.

3.Each clamp Connection terminals has a test hole, An electric pen can be used to check whether the terminal has power. Which makes it convenient for testing and maintenance.

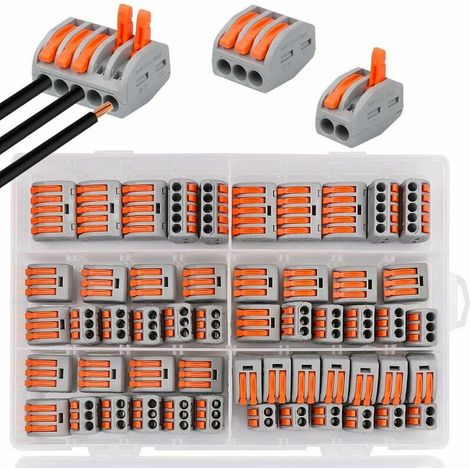

Connection terminal set includes:

20 2-hole clamps (PCT-212: 2.1 x 1.3 x 1.5 cm)

30 3-hole clamps (PCT-213: 2.1 x 1.7 x 1.5 cm)</ p>

10 5-hole clamps (PCT-215: 2.1 x 2.7 x 1.5 cm)
