Product information

Description

General description

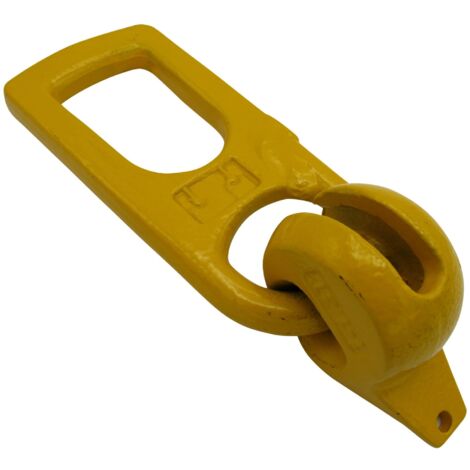

This Precast Concrete Lifting Clutch is essential for safely lifting prefabricated concrete products. Designed to enhance safety and efficiency, it is crucial to use this specialized equipment to prevent damage and ensure the safety of personnel in the area.

Technical specifications

  • Length of lifting attachment plate: 335 mm
  • Width: 160 mm
  • Thickness of lifting attachment plate: 28 mm
  • Overall length: 420 mm
  • Suits anchor pin shaft diameter: up to 30 mm
  • Suits anchor pin head: over 48 mm
  • Safe working load: 6T - 10T
  • Weight: 9.25 kg
  • Manufactured from Grade 80 steel
  • Powder coated yellow
  • Manufactured in accordance with BS-EN818-2

    • Installation

    This lifting clutch is designed to be used with a lifting pin anchor that is set and recessed into the cast concrete block. The clutch hooks onto the head of the anchor, ensuring a secure connection during the lifting process.

    Usage

    When lifting begins, the clutch rotates until it locks into position, providing a reliable and safe lifting mechanism for precast concrete products.

    Features

    • Brand
      SECUREFIX DIRECT
    • Pcs per pack
      1
    • Power source
      Manual
    • Height
      2.8 cm
    • Width
      16 cm
    • Length
      42 cm
    • Suitable for
      Mineral / stone
    • Material
      Steel
    • Weight
      9250 g
    • ManoMano Reference
      ME57353719
    • MMID
      910679254607
    • Product code
      SFYASLC6
    • EAN
      0600988539198
