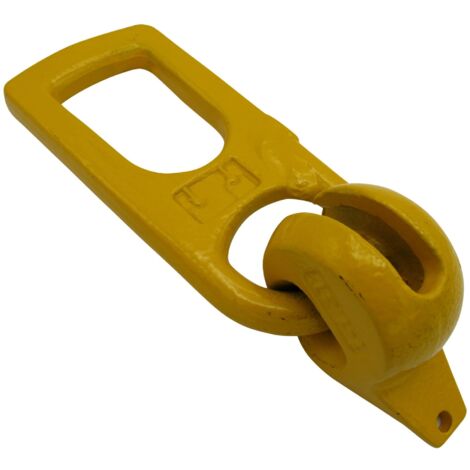

Precast Concrete Lifting Clutch 3T - 5T (Ring Panel Device Equipment)

Product out of stock

Product information

Description

General description

Specialist equipment is essential when lifting prefabricated concrete products, as not using the correct equipment could result in serious damage to the product and surrounding area, posing a significant danger to anyone working in the vicinity. This lifting clutch is designed to safely and efficiently lift precast concrete elements, such as columns or staircases, using a lifting pin anchor that is set and recessed into the cast concrete block. The clutch hooks onto the head of the anchor and rotates to lock into position during the lifting process.

Technical specifications

Manufactured from Grade 80 steel

Powder coated yellow

Manufactured in accordance with BS-EN818-2

Length of lifting attachment plate: 240 mm

Width of lifting attachment plate: 110 mm

Thickness of lifting attachment plate: 19 mm (not measured from the thickest part)

Overall length: 300 mm

Suits anchor pin shaft diameter: Under 21 mm

Suits anchor pin head diameter: Over 38 mm

Safe working load: 3 - 5 T

Weight: 3.25 kg

Features

Brand
SECUREFIX DIRECT
Length
30 cm
Width
11 cm
Height
1.9 cm
Weight
3250 g
