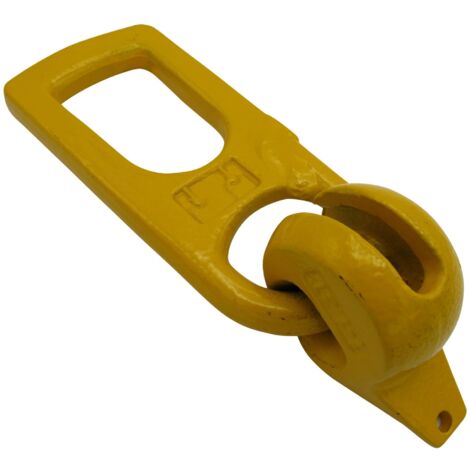

Precast Concrete Lifting Clutch 1T - 1.3T (Ring Panel Device Equipment)

Name: Precast Concrete Lifting Clutch 1T - 1.3T (Ring Panel Device Equipment)
Brand: SECUREFIX DIRECT
SKU: SFYASLC1
Price: 30.5 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by SecureFix Direct

Product information

Description

General description

This Precast Concrete Lifting Clutch is essential for safely lifting prefabricated concrete products such as columns and staircases. It is designed to ensure efficient lifting while minimizing the risk of damage to the product and surrounding area, as well as ensuring the safety of personnel involved in the lifting process.

Technical specifications

Length of Lifting Attachment Plate: 160 mm

Width: 73 mm

Thickness of Lifting Attachment Plate: 13 mm

Overall Length: 200 mm

Suits Anchor Pin Shaft Diameter: Up to 11 mm

Suits Anchor Pin Head: Over 23 mm

Safe Working Load: 1 - 1.3 T

Weight: 0.95 kg

Manufactured from Grade 80 steel and powder coated yellow

Manufactured in accordance with BS-EN818-2

Installation

The lifting clutch is designed to be used with a lifting pin anchor that is set and recessed into the cast concrete block. The clutch hooks onto the head of the anchor, and during the lifting process, it rotates until it locks into position.
