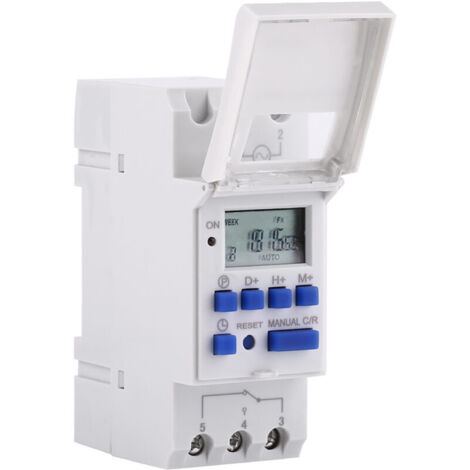

Programmable Weekly Timer Switch, Relay Switch, with LCD Screen, 16-on and 8-off Timer, AC/DC 24V

~~£29.46~~

Of which environmental contribution £0.01 including VAT.

Sold by Sinocor GmbH

Product information

Description

General Description

This weekly programmable timer switch allows you to automatically control various electrical devices according to user-defined schedules. It is equipped with an LCD screen that displays the hours, minutes, and ON/AUTO/OFF modes in real time. With 16 ON and 8 OFF settings, it offers great flexibility for controlling lighting and other household appliances.

Technical Specifications

Input Voltage: AC/DC12V, AC/DC24V, AC110V (optional)
Contact Voltage: AC 180V to 264V (50/60Hz)
Load Capacity: 16A 250VAC (resistive load)
Display: LCD
Power: 4.5VA (maximum)
Error: ≤2s/day (25℃)
Operating Temperature: -10℃ to 55℃
Size: 86 x 36 x 65 mm / 3.38 x 1.41 x 2.56"

Installation

This timer mounts on a DIN rail (not included). It is important to charge the built-in 1.2V/40mA battery before first use and reset the device.

Operation

To use the timer, simply plug it into an AC power outlet and set the desired times. The timer is in 24-hour mode by default, but it can be changed to 12-hour mode by pressing and holding the "time" button for 5 seconds. To return to 24-hour mode, simply repeat the operation.

Other Information

Advanced one-week preset
High accuracy and strong anti-interference capability
Ideal for controlling streetlights, neon lights, production equipment, radio, and television
Package includes: 1 timer and 1 user manual English

Features

Brand
TEHTUY
Width
10 mm
Height
10 mm
Amperage
16 A
Material
Leather
