Quad Master Link Assembly Grade 100 16MM (23 Ton Lifting Chain Sling 3 4 Leg)

Name: Quad Master Link Assembly Grade 100 16MM (23 Ton Lifting Chain Sling 3 4 Leg)
Brand: SECUREFIX DIRECT
SKU: SFG10QML16
Price: 150 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

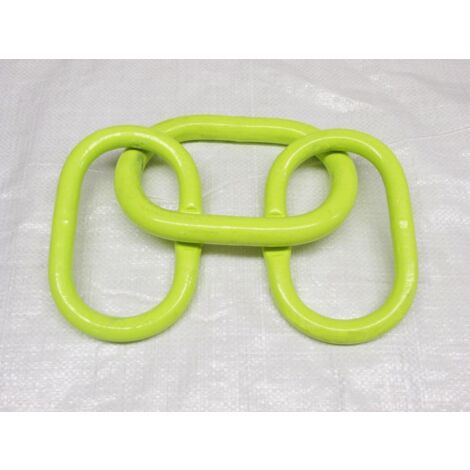

Quad Master Link Assembly is designed for use with 16MM chain sizes and is suitable for both 3 and 4 leg chain slings. Made from Grade 100 material, these links are lighter yet stronger than Grade 80 counterparts, making them a high-quality choice for the lifting gear industry.

Technical specifications

Material: Grade 100

Finish: Light Green (Colour May Vary)

Factor of Safety: 4:1

Conforms to: ASTM A952

Available Product Codes and Specifications:

Product Code: SFG10QML08 - SWL: 3 Ton, A: 160 MM, B: 94.5 MM, C: 23 MM, D: 19 MM, E: 141.5 MM, F: 78 MM

Product Code: SFG10QML10 - SWL: 6.5 Ton, A: 204 MM, B: 120.5 MM, C: 31 MM, D: 23 MM, E: 163 MM, F: 94.5 MM

Product Code: SFG10QML13 - SWL: 15 Ton, A: 255 MM, B: 150 MM, C: 39 MM, D: 30 MM, E: 205 MM, F: 122 MM

Product Code: SFG10QML16 - SWL: 23 Ton, A: 315 MM, B: 200 MM, C: 47 MM, D: 32 MM, E: 200 MM, F: 123 MM

Other information

Test Certificate will be supplied via email

Free delivery available

Features

Brand
SECUREFIX DIRECT
Weight
100 g
Pcs per pack
1
Material
Two-material
ManoMano Reference
ME27140381
MMID
143068321010
Product code
SFG10QML16
EAN
0600988489547
