Product information

Description

General description

This portable digital multimeter is designed for accurate measurement of electrical parameters such as current, voltage (AC/DC), resistance, capacitance, frequency, temperature, continuity, and diode testing. It features an automatic selection of the best measurement range and provides quick, precise readings. The device is built with a durable, waterproof IP67 casing, resistant to drops and suitable for challenging work environments. It includes an extra-large backlit LCD display for easy reading in low-light conditions and has an automatic shut-off function after 15 minutes of inactivity.

Technical specifications

Protection class: IP67

Functions: 11 in total, including voltage, current, resistance, capacitance, frequency, temperature, continuity, and diode testing

Automatic and manual selection of measurement range

True RMS measurement for accurate readings of AC signals

Overload protection: CAT III & IV 1000 V / 600 V

Fuses: 2 x 0.5 A and 10 A, 1000 V

Double insulation (Class II, double shielding)

Automatic polarity display

Auto power-off after 15 minutes

Compatibility and accessories

Includes test leads with protective caps

Adapter K and temperature probe included

Installation

Insert the test leads into the appropriate ports on the multimeter

Connect the test leads to the component or circuit to be tested

Turn on the device and select the desired measurement function

Usage

Use the rotary switch or buttons to select the measurement mode

Connect the test leads to the circuit or component, observing correct polarity

Read the measurement on the backlit LCD display

Use the automatic or manual range setting for optimal accuracy

Turn off the device or wait for auto shut-off after 15 minutes of inactivity

Other information

Includes a carrying case for storage and transport

Features

Brand
RIDGID
Smart
Yes
Height
10 cm
IP rating
IP67
Width
100 cm
Length
25 cm
Material
Plastic
Display mode
Digital
Backlighting
Yes
ManoMano Reference
ME13664400
MMID
578122528962
Product code
R37423

Multimeter buying guide

A multimeter is an essential tool used to measure various electrical values. From digital multimeters with screens to analogue models with needle scales, multimeters all look alike so it can be tricky to choose the right device. Read on for our best safety practices and tips to help you find the best multimeter!

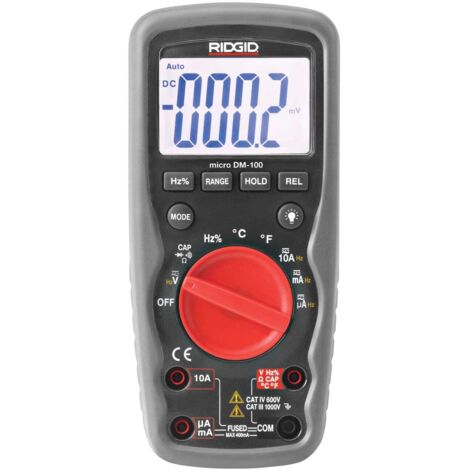

RIDGID Micro Digital Multimeter DM-100 with Auto-Range Testing and Compact Design
