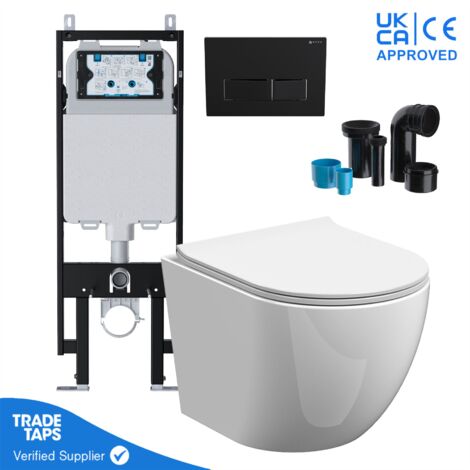

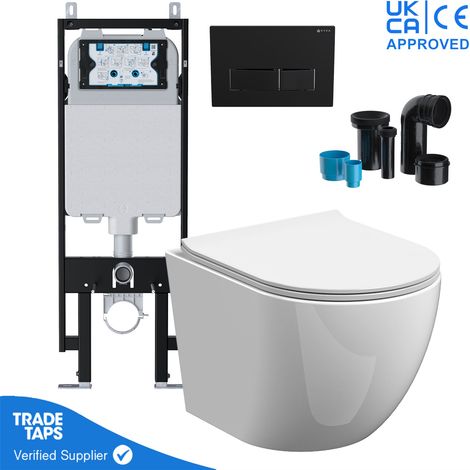

Rimless Wall Hung Toilet Pan with VIVA Slim Concealed Cistern Frame 1.14-1.35m & Square Matt Black Flush Plate

Product out of stock

Product information

Description

General description

This Rimless Wall Hung Toilet Pan with VIVA Slim Concealed Cistern Frame is designed to enhance your bathroom with a modern, space-saving aesthetic. Crafted from high-quality heavyweight ceramic, it features a luxury gloss white finish and a contemporary design characterized by soft chiselled edges and gentle curvature. The hidden fixation assembly maintains a minimalist look, while the complete set includes a matching wrap-over soft-close toilet seat with a quick-release mechanism for easy cleaning.

Technical specifications

Toilet Size: (H) 323mm x (W) 360mm x (D) 482mm

Frame Size: (H) 1140mm x (W) 400mm x (D) 75mm

Flush Size: (H) 320mm x (W) 350mm x (D) 140mm

Height adjustable from 1140mm to 1350mm

Suitable for depths up to 150mm

Compatibility and accessories

Includes a complete set or frame only options

Comes with an angled outlet connector

Includes a soil pipe connector and flush pipe with flush cone

Features a dual flush plate

All necessary installation fixings are pre-supplied

Installation

Wall mounted installation

Height adjustable feet for flexible installation

Quick snap-in fixing bolts for easy setup

Usage

Soft-close seat mechanism prevents slamming

Quick-release seat mechanism allows for easy access and cleaning

Other information

10 years warranty on the frame, 2 years warranty on the toilet seat

Genuine UK supplier

Features

Brand
GRAVAHAUS
Finishing appearance
Matt
Colour
White
Material
Ceramic
Bowl sold separately
Yes
Wash function
No
Shape
Square
Width
36 cm
Toilet seat material
Plastic
Bowl material
Ceramic
Toilet and Bidet Set
No
Weight
46.6 kg
Pcs per pack
1
Flange type
Rimless
Type of toilet
Wall-hung
Type of flush mechanism
Double flush
Macerating toilet
No
ManoMano Reference
ME85953856
MMID
235496562611
Product code
VIVA#37#NCG340-SKYWHF01-ULTRA22
EAN
5060996138120

Advice from

Toilet fixing frame buying guide

Wall-hung toilets fit perfectly into contemporary-style bathrooms as you only see the bits you need to clean: the pan, lid and flush button. Beyond these parts, the whole mechanism is hidden behind casing and supported by a toilet frame. Read on for all you need to know about picking the right frame for your toilet!

Read our guide
