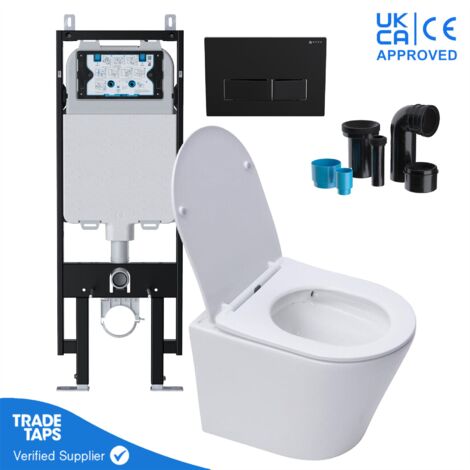

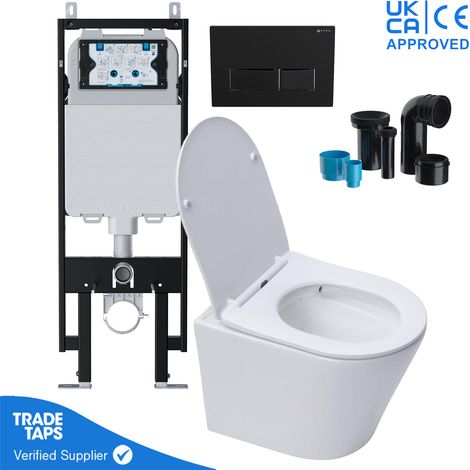

Wall Hung Toilet Pan Round with VIVA Slim Concealed Cistern Frame 1.14-1.35m & Square Matt Black Flush Plate

Product out of stock

Product information

Description

General description

This wall hung toilet pan features a round design and comes with a VIVA slim concealed cistern frame, making it an ideal choice for modern bathrooms. Crafted from high-quality heavyweight ceramic with a luxury gloss white finish, it combines contemporary aesthetics with functionality. The toilet includes a soft-close seat mechanism to prevent slamming and a quick-release seat for easy cleaning.

Technical specifications

Toilet Size: (H) 343mm x (W) 365mm x (D) 485mm

Frame Size: (H) 1140mm x (W) 400mm x (D) 75mm

Flush Size: (H) 320mm x (W) 350mm x (D) 140mm

Height adjustable from 1140mm to 1350mm

Suitable for depths up to 150mm

Compatibility and accessories

Includes angled outlet connector

Plain end WC connector

Soil pipe connector

Flush pipe with flush cone

Drain & flush pipe cap

Quick snap-in fixing bolts

Air gap fill valve

Installation

Wall mounted installation

All necessary installation fixings are pre-supplied

Height adjustable feet for flexible installation

Usage

Designed for modern, space-saving bathroom designs

Soft-close seat mechanism enhances user comfort

Quick-release seat allows for easy access and cleaning

Other information

10 years warranty on the frame

2 years warranty on the toilet seat

Features

Brand
GRAVAHAUS
Colour
White
Material
Ceramic
Toilet seat features
Soft close
Compatible with soft-close toilet seat
Yes
Bowl sold separately
Yes
Wash function
No
Shape
Rounded
Seat height
34.3 cm
Height of the bowl
34.3 cm
Lift height
0.343 m
Total height
34.3 cm
Width
36.5 cm
Toilet seat material
Plastic
Bowl material
Ceramic
Supplied flush mechanism pre-assembled
Yes
Toilet and Bidet Set
No
Weight
46.6 kg
Pcs per pack
1
Shut-off valve included
Yes
Support frame type
Wall
Type of toilet
Wall-hung
Type of flush mechanism
Double flush
Macerating toilet
No
ManoMano Reference
ME85953857
MMID
906098130515
Product code
VIVA#38#SATINF010RREXP-SKYWHF01-ULTRA22
EAN
5060996138182
