General description
The CasaFan CTH Range Room Thermostat is designed for efficient temperature control in various environments. It can manage one or multiple fans based on the room temperature, ensuring optimal comfort. The thermostat is available in two models: CTH 10 with an integrated sensor and CTHf 10 with an external remote sensor.Technical specifications
- Voltage: 230 V ~ 50 Hz
- Max. load: 10 A
- Housing material: ABS plastic, light grey
- Adjustable temperature range: +5 °C to +35 °C
- Switching differential: approximately 2 K
- IP rating: IP54

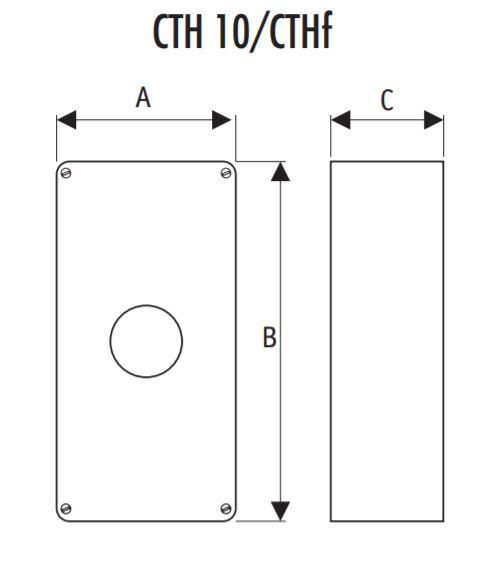

- Dimensions (CTH 10 and CTHf 10): 80 mm (W) x 160 mm (H) x 57 mm (D)
- Dimensions (Remote sensor): 80 mm (W) x 80 mm (H)
Compatibility and accessories
- Can be used with a speed controller/step transformer (sold separately)
Installation
- Surface-mounted on the wall
Usage
- Controls the operation of fans based on increasing or decreasing room temperature
- Can be set to operate as an opening or closing contact
Other information
