Room Thermostat CasaFan CTH Range IP54

Name: Room Thermostat CasaFan CTH Range IP54
Brand: CASAFAN
SKU: 98279
Price: 246.29 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by creoven

Product information

Description

General description

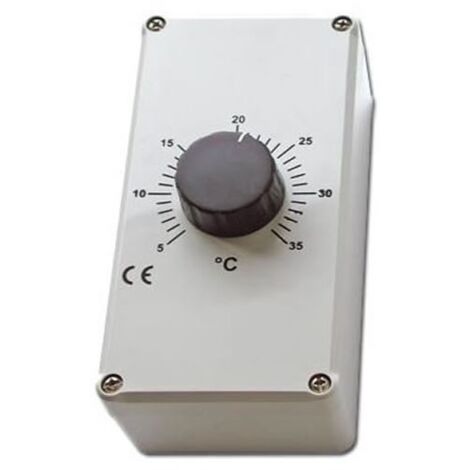

The CasaFan CTH Range Room Thermostat is designed for efficient temperature control in various environments. It can manage one or multiple fans based on the room temperature, ensuring optimal comfort. The thermostat is available in two models: CTH 10 with an integrated sensor and CTHf 10 with an external remote sensor.

Technical specifications

Voltage: 230 V ~ 50 Hz

Max. load: 10 A

Housing material: ABS plastic, light grey

Adjustable temperature range: +5 °C to +35 °C

Switching differential: approximately 2 K

IP rating: IP54

Dimensions:

CTH 10: 80 mm (B) x 160 mm (H) x 57 mm (C)

CTHf 10: 80 mm (B) x 160 mm (H) x 57 mm (C)

Remote sensor: 80 mm (B) x 80 mm (H)

Installation

Surface-mounted installation on the wall

CTHf 10 model requires connection to a common 2-pole wire (2x 1.5 mm²) for the external sensor

Usage

Controls operation of fans based on increasing or decreasing room temperature

Can be configured as an opening or closing contact

Compatible with speed controllers or step transformers (sold separately)

Other information

Features

Brand
CASAFAN
Material
Acrylonitrile butadiene styrene (ABS)
Connection configuration
M-M
Colour
Light grey
Shape
Rectangular
Height
160 mm
Head type
Thermostatic
Thermostat type
Corded
ManoMano Reference
ME30904993
MMID
613740908805
Product code
98279
EAN
4024397353255
