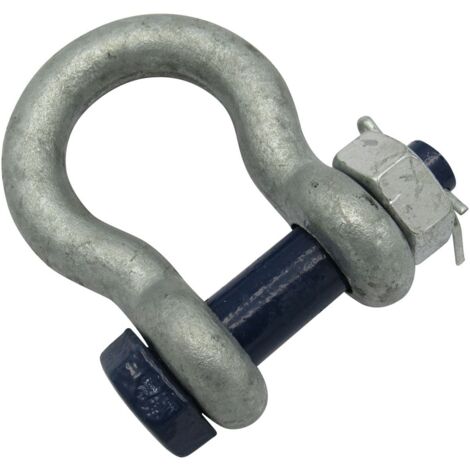

Safety Pin Bow Shackle - 3.25 Ton Galvanised 19MM 3250KG Omega

Name: Safety Pin Bow Shackle - 3.25 Ton Galvanised 19MM 3250KG Omega
Brand: SECUREFIX DIRECT
SKU: SFUSSAB3.25
Price: 9.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

The Safety Pin Bow Shackle is a robust and reliable lifting accessory designed for various applications, including lifting and towing. With a safety working load (SWL) of 3.25 tons (3250 kg), this shackle features a bow shape that allows for a wider lifting point compared to a Dee shackle, making it versatile for both inline lifting and lifting at angles of up to 45 degrees. The shackle is fitted with a blue painted safety pin that prevents slipping, ensuring extra security and peace of mind during use.

Technical specifications

Product Code: SFUSSAB3.25

Product Weight: 0.68 kg

SWL: 3.25 tons (3250 kg)

Body Finish: Hot Dipped Galvanised

Safety Factor: 5:1

Dimensions:

A: 16 mm

B: 18.5 mm

C: 30 mm

D: 39.5 mm

E: 60.5 mm

F: 42.5 mm

G: 21.25 mm

Other information

Conforms to: BS EN 13889: 2003 + A1: 2008

US Federal Specification: RR-C-27IDIV

Test Certificate Supplied (Sent Via Email)

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Warranty
1 year(s)
Maximum load
3250 kg
Material
Two-material
