Safety Pin Bow Shackle - 55 Ton Galvanised 70MM 55000KG Omega

Name: Safety Pin Bow Shackle - 55 Ton Galvanised 70MM 55000KG Omega
Brand: SECUREFIX DIRECT
SKU: SFUSSAB55
Price: 180.4 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

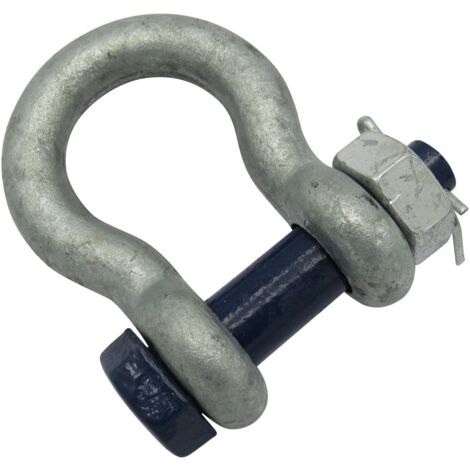

The Safety Pin Bow Shackle is a robust and reliable lifting accessory designed for heavy-duty applications. With a safe working load (SWL) of 55 tons (55000 kg), this shackle is ideal for lifting and towing tasks. Its bow shape allows for a wider lifting point compared to traditional Dee shackles, making it versatile for various lifting angles, including inline and up to 45 degrees. The shackle features a blue painted safety pin that prevents slippage, ensuring added security during use.

Technical specifications

Product Code: SFUSSAB55

Product Weight: 41 kg

SWL: 55 tons (55000 kg)

Body Finish: Hot Dipped Galvanised

Safety Factor: 5:1

Dimensions:

A (MM): 66.8

B (MM): 70.1

C (MM): 120.8

D (MM): 145

E (MM): 170

F (MM): 180

G (MM): 93.3

Other information

Conforms to: BS EN 13889: 2003 + A1: 2008

Test Certificate Supplied (Sent Via Email)

*Please note colour can vary to picture*

Features

Brand
SECUREFIX DIRECT
Material
Steel
Inside diameter
70 mm
Pcs per pack
1
Warranty
1 year(s)
