Safety Pin Bow Shackle - 35 Ton Galvanised 55MM 35000KG Omega

Name: Safety Pin Bow Shackle - 35 Ton Galvanised 55MM 35000KG Omega
Brand: SECUREFIX DIRECT
SKU: SFUSSAB35
Availability: OutOfStock

Product out of stock

Product information

Description

General description

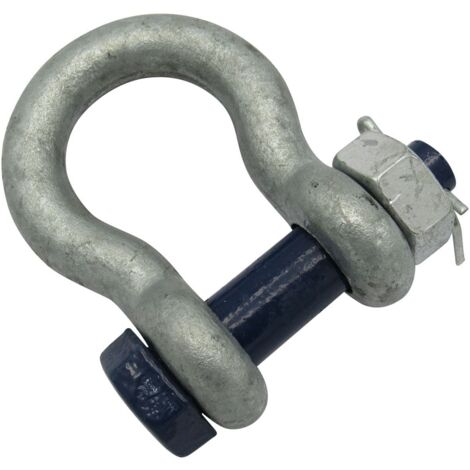

Our 35 Ton Bow Shackle is designed for heavy-duty lifting and towing applications. It features a safety screw pin and a hot-dipped galvanised finish, ensuring durability and resistance to rust. The bow shape allows for a wider lifting point, making it suitable for both inline lifting and lifting at angles of up to 45 degrees. This shackle is equipped with a blue painted safety pin that prevents slippage, providing extra security and peace of mind.

Technical specifications

Product Code: SFUSSAB35

Product Weight: 19 kg

Safe Working Load (SWL): 35 Ton

Body Finish: Hot Dipped Galvanised

Dimensions:

A (MM): 51.4

B (MM): 55.1

C (MM): 87.6

D (MM): 128

E (MM): 195

F (MM): 140

G (MM): 71.58

Other information

Conforms to: BS EN 13889: 2003 + A1: 2008

US Federal Specification RR-C-27IDIV

Test Certificate Supplied (Sent Via Email)

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Warranty
1 year(s)
Weight
100 g
Maximum load
80 kg
