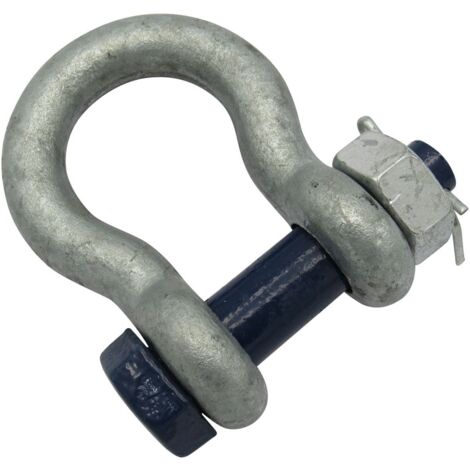

Safety Pin Bow Shackle - 4.75 Ton Galvanised 22MM 4750KG Omega

Name: Safety Pin Bow Shackle - 4.75 Ton Galvanised 22MM 4750KG Omega
Brand: SECUREFIX DIRECT
SKU: SFUSSAB4.75
Price: 9.85 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

The Safety Pin Bow Shackle is a robust and reliable lifting accessory designed for various applications, including lifting and towing. With a safety working load (SWL) of 4.75 tons (4750 kg), this shackle features a hot-dipped galvanised finish that offers excellent resistance to rust, ensuring durability and longevity. The blue painted safety pin prevents slippage, providing added security and peace of mind during use.

Technical specifications

Product Code: SFUSSAB4.75

Product Weight: 1.06 kg

SWL: 4.75 tons (4750 kg)

Body Finish: Hot Dipped Galvanised

Safety Factor: 5:1

Dimensions:

A (MM): 19

B (MM): 22

C (MM): 33.5

D (MM): 46

E (MM): 71

F (MM): 49.5

G (MM): 24.75

Other information

Conforms to: BS EN 13889: 2003 + A1: 2008

Test Certificate Supplied (Sent Via Email)

*Please note colour can vary from picture*

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Weight
100 g
Maximum load
4750 kg
Material
Two-material
ManoMano Reference
ME27133875
MMID
652468546238
Product code
SFUSSAB4.75
EAN
600988494749
