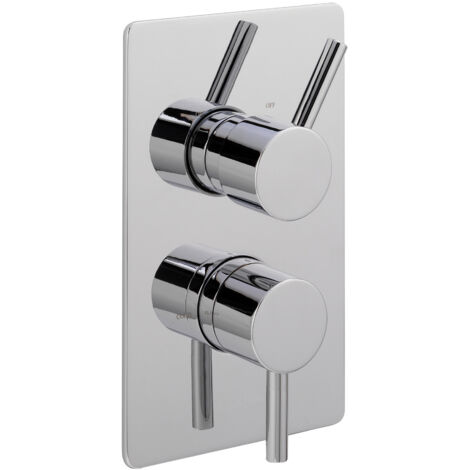

Sagittarius Ergo Concealed Shower Valve Dual Handle - Chrome

Name: Sagittarius Ergo Concealed Shower Valve Dual Handle - Chrome
Brand: MM_UNVERIFIED_BRAND
SKU: EL/572/C
Price: 307.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

The Sagittarius Ergo Concealed Shower Valve, Dual Handle, Chrome is part of the stylish Sagittarius Ergo Shower Valve Range. Designed to meet TMV2 standards and finished in mirror polished chrome, this shower valve enhances your shower experience. It is suitable for concealed wall installation and features a portrait style rectangular backplate.

Technical specifications

Shower Type: Thermostatic Shower Valve

Controls: 2

Valve Position: Concealed

Valve Shape: Rectangular

Handle Type: Lever

Shower Valve Outlets: 1

Minimum Pressure: 0.5 Bar

Maximum Pressure: 7.0 Bar

Shower Valve Height: 215mm

Shower Valve Width: 120mm

Inlet Connection Size: G 3/4

Material: Brass

Colour: Chrome

Brand: Sagittarius

Collection: Ergo

Style: Modern

Market: Domestic

Flow Rate @ 0.5 Bar: 10.7 l/min

Flow Rate @ 1.0 Bar: 12.7 l/min

Flow Rate @ 2.0 Bar: 15.7 l/min

Flow Rate @ 3.0 Bar: 18.1 l/min

Manufacturer Part Number: EL/572/C

Usage

The thermostatic valve allows for precise adjustment of both low and high-pressure water systems, ensuring a safe and enjoyable showering experience. The temperature is pre-set at 38 degrees Celsius, with a push button override to reach up to 48 degrees Celsius.

Other information

Products from Sagittarius are manufactured to the highest standards, including BS5412, BS1010, TMV2 & TMV3. The shower valve is chrome plated to BS EN248 and comes with a 10-year guarantee (3 years on serviceable parts).

Features

Brand
MM_UNVERIFIED_BRAND
Colour
Copper
Warranty
10 year(s)
Material
Brass
Adapted for PRM
No
