General description

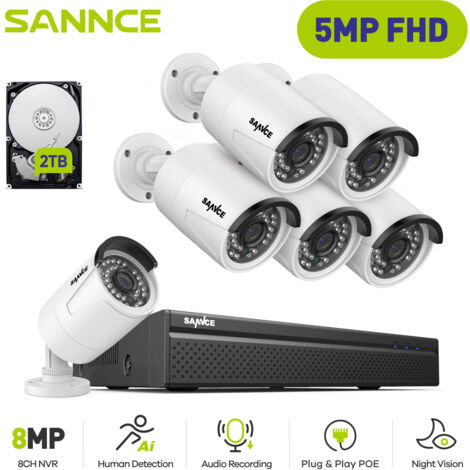

Experience enhanced security with the SANNCE 5MP H.264+ PoE NVR system, featuring 8 channels and 6 waterproof IP66 security cameras. This comprehensive system is designed for both indoor and outdoor use, ensuring reliable surveillance day and night with its Super HD 5MP resolution. The included 2TB HDD provides ample storage for your recordings, making it an ideal choice for home or business security.Technical specifications
- Video Compression: H.265+
- IP Video Input: 8CH POE + 2CH
- Video Output: HDMI up to 4K
- Max Recording Resolution: Up to 8M (3860x2160)
- Max Playback Resolution: Up to 8M (3860x2160)
- Max Playback Channel: 4CH
- Max Playback Capacity: 4CH 3MP / 2CH 5MP / 1CH 8MP
- HDD Capacity: Up to 12TB
- Operating Power: DC48V
- Power Consumption: 10W (without HDD)
- Working Temperature: 32 °F – 131 °F / 0 °C – 55 °C
- Dimensions (W x H x D): 10.2” x 9.6” x 1.9” / 260 x 245 x 47mm
- Weight (without hard disk): 1.68lbs / 760g
- Camera Video Resolution: 5MP (2880x1616)
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Lens: 3.6mm
- Angle of View: 70°
- Night Vision Distance: Up to 100ft / 30m
- Weatherproof Rating: IP66
- Camera Dimensions (L x W x H): 6.7” x 2.6” x 2.6” / 170 x 65 x 65mm
- Camera Weight: 0.772lbs / 350g
Compatibility and accessories
- Compatible with IP cameras supporting H.265+/H.265/H.264+/H.264
- Includes 6 IPC POE cameras with 5MP resolution
Installation
- Plug & Play PoE connection for easy setup
- Connect cameras to the NVR using network cables for power and video transmission
Usage
- Remote access via SANNCE app on smartphones, tablets, or computers
- Live viewing and recording in high definition
- Smart alerts via email and app notifications for motion detection
