General description

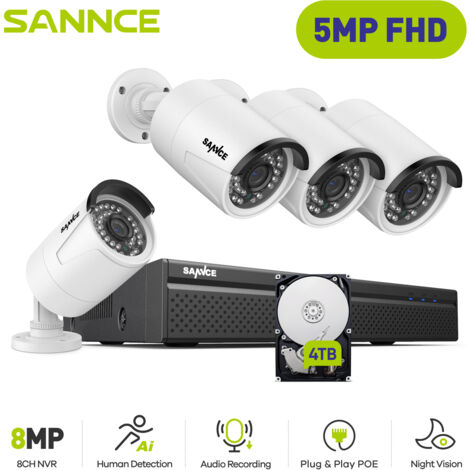

The SANNCE 5MP H.264+ PoE NVR Surveillance Kit is a comprehensive security solution designed for both indoor and outdoor use. This kit includes an 8-channel NVR and four high-definition 5MP CCTV cameras, ensuring superior image quality day and night. With advanced features such as remote access, built-in microphones, and smart alerts, this system provides reliable surveillance for your property.Technical specifications
- Video Compression: H.265+
- IP Video Input: 8CH POE + 2CH
- Video Output: HDMI up to 4K
- Max Recording Resolution: Up to 8M (3860x2160)
- Max Playback Resolution: Up to 8M (3860x2160)
- Max Playback Channel: 4CH
- Max Playback Capacity: 4CH 3MP / 2CH 5MP / 1CH 8MP
- Hard Drive: 1 SATA interface, up to 12TB capacity
- POE: 8 Ports (IEEE802.3at/af)
- Operating Power: DC48V
- Power Consumption: 10W (without HDD)
- Working Temperature: 32°F – 131°F / 0°C – 55°C
- Dimensions (W x H x D): 10.2” x 9.6” x 1.9” / 260 x 245 x 47mm
- Weight (without hard disk): 1.68lbs / 760g
Compatibility and accessories
- Compatible with IP cameras supporting H.265+/H.265/H.264+/H.264
- Includes 4 x 5MP outdoor IPC POE cameras
Installation
- Plug & Play PoE connection for easy setup
- Connect cameras to the NVR using network cables for power and video transmission
Usage
- Live viewing and high-definition recording from 5MP cameras
- Remote access via SANNCE app on smartphones, tablets, or computers
- Smart alerts via email and app notifications for motion detection
Other information
- Microphone integrated for audio capture
- Night vision capability up to 100ft with SmartIR technology
- Weatherproof rating: IP66
- Robust metal housing for durability
