General description

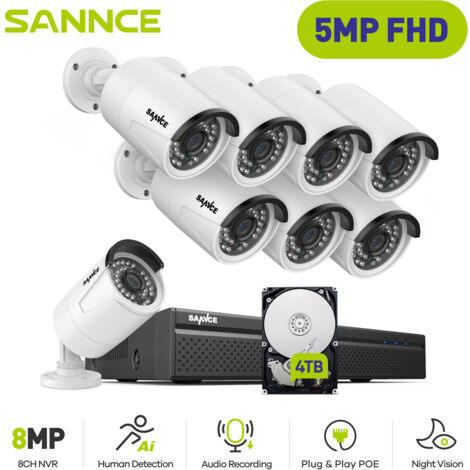

The SANNCE 5MP H.264+ Video Surveillance Kit is a comprehensive security solution featuring an 8-channel NVR and 8 high-definition CCTV cameras. Designed for both indoor and outdoor use, this system ensures robust surveillance with its waterproof IP66-rated cameras. The kit includes a 4TB HDD for ample storage, making it ideal for continuous monitoring and recording.Technical specifications
- Video Resolution: 5MP (2880x1616)
- Video Compression: H.265+
- Audio Compression: G.711A
- Max Recording Resolution: Up to 8M (3860x2160)
- Max Playback Resolution: Up to 8M (3860x2160)
- Max Playback Channel: 4CH
- Max Playback Capacity: 4CH 3MP/2CH 5MP/1CH 8MP
- HDD Capacity: Up to 12TB
- Operating Power: DC48V
- Power Consumption: 10W (without HDD)
- Dimensions (NVR): 10.2” x 9.6” x 1.9” / 260 x 245 x 47mm
- Weight (NVR, without HDD): 1.68lbs / 760g
- Camera Dimensions: 6.7” x 2.6” x 2.6” / 170 x 65 x 65mm
- Camera Weight: 0.772lbs / 350g
- Night Vision Distance: Up to 100ft / 30m
- Operating Temperature (NVR): 32 °F – 131 °F / 0 °C – 55 °C
- Operating Temperature (Camera): -4 °F – 140 °F / -20 °C – 60 °C
Compatibility and accessories
- Supports IP cameras that utilize H.265+/H.265/H.264+/H.264 encoding formats
- Includes 8 IPC POE cameras with a resolution of 4 x 5 megapixels
Installation
- Plug & Play PoE connection for easy setup
- Connect cameras to the NVR using network cables for power and video transmission
Usage
- Remote access via the free SANNCE app on smartphones, tablets, or computers
- Live viewing and high-definition recording capabilities
- Smart alerts via email and app notifications for motion detection and video loss
