230V TABLE MITRE SAW 254 MM 1800W SCHEPPACH HM100T

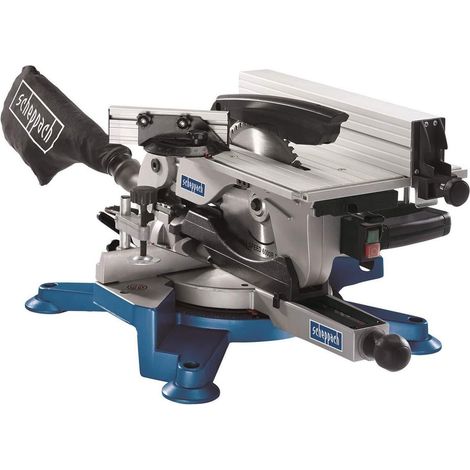

TABLE MITRE SAW SCHEPPACH HM100T

This innovative saw from Scheppach is a combination of two saw types in one machine: mitre and table saw. This saves a lot of space in a small workshop.

• Lightweight die cast aluminium design for easy transport
• Powerful 1800 W motor provides various cutting applications
• Tilting saw blade from 0 – 45°
• Compact bench top design fi ts conveniently in small workshop environments
• The 60 tooth, carbide tipped blade stays sharp and makes clean cuts
• Torsion resistant design and top quality construction
• Featuring two modes: mitre saw and table saw, making it suitable for a variety of cutting applications
• Dust collection bag for a clean working area

The HM100T only claims 700 x 490 x 380 mm. This makes the compact table crosscut saw particularly suitable for small workshops in which the do-it-yourselfer still wants to use the versatility of the table saw and mitre saw. The machine weighs almost 19 kg with its robust yet light die-cast aluminum frame. This means it stands securely when sawing, but can still be easily transported or set aside when workbench space is needed.

With 1800 W, the powerful motor is more than up to the task of being used as a multifunctional device. Together with the 254 mm HW saw blade with 60 teeth, it ensures consistent and precise cutting results.

The table measures 432 x 298 mm. The cutting height is 0-46 mm and the rip fence enables exact straight cuts. In addition, the stop can be swiveled from -60° to +60° to enable bevel cuts.
The saw blade is equipped with a saw blade guard for user safety.

The HM100T cross-cut saw has a turntable with a swivel range of -50° to +60°. For precise miter cuts, the saw blade can be tilted from 0° to 45° to the left. With a 90° cut, a cutting width and depth of up to 110 x 70 mm is possible.

In order to keep the working area free of chips when using the HM100T for a short time, the chip collection bag supplied can be used. For longer use, an external suction can be attached to the 32 mm suction nozzle. In this way, dust exposure in the workshop can be effectively prevented.

Technical data

Dimensions L x W x H : 730 x 465 x 630 mm
Blade Ø : 254 mm
Blade speed : 5000 rpm
Cutting width – cross cutting 90 / 90° : 110 / 70 mm
Cutting depth – cross cutting 90 / 45° : 70 / 70 mm
Cutting height – table mode 90° : 46 mm
Table size : 460 x 335 mm
Motor : 220 – 240 V~
Input : 1800 W
