General description

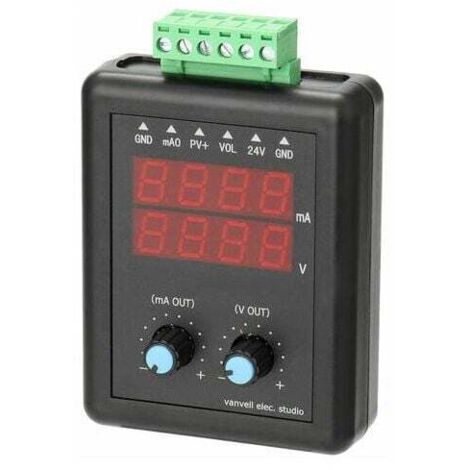

The MUMU Signal Generator is a versatile device designed for generating 4-20mA and 0-10V signals. It operates on a rechargeable lithium battery and features a user-friendly interface for adjusting output levels. The generator is equipped with a display for easy monitoring of settings.Technical specifications
- Name: Signal Generator
- Active current output: 0–22 mA (minimum output approximately 0.06 mA), Load: 0–550 Ω
- Passive current output: 0–22 mA (minimum output approximately 0.06 mA), external power supply up to 30V, Load: 0–550 Ω
- Voltage output: 0V-12V (minimum output approximately 0.05V)
- 24V output: Control current: 35mA (do not exceed 35mA)
- Operating environment: 0 °C–50 °C, non-condensing
- Item size: 90 * 70 * 28 mm / 3.54 * 2.76 * 1.10 inches
- Packaging size: 150 * 100 * 80 mm / 5.91 * 3.94 * 3.15 inches
- Packaging weight: 120 g / 4.23 oz
Usage
- The current output encoder increases output when turned right and decreases when turned left. You can change the cursor position with the encoder button to adjust output increments (0.01 mA, 0.1 mA, 1 mA, 10 mA).
- The voltage output encoder functions similarly, allowing adjustments in increments (0.01 V, 0.1 V, 1 V, 10 V).
- For 24V output, it is directly provided when power is applied.
- To access the correction interface for output adjustments, press and hold the current output encoder button for more than 2 seconds. The correction range for both current and voltage outputs is ±9.99%.
- Press the voltage encoder button to save settings and the current encoder button to cancel settings.
