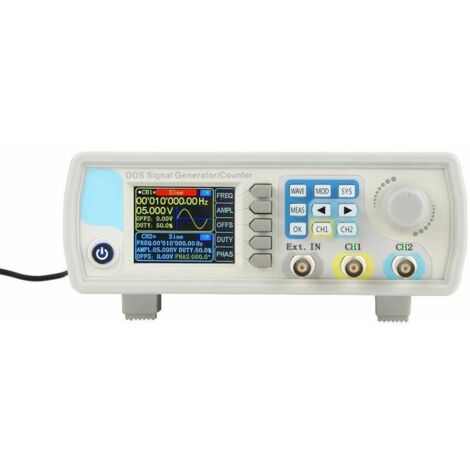

Signal Generator, JDS6600 DDS Function Generator Digital Sinusoidal Frequency Controller Arbitrary Signal Generator Signal Generator Frequency Counter (15MHz EU)
You may also like
![[NEVER USED] Multimeter, Ohmmeter and Ammeter Digital Multimeter XL830L 2000 Counts Mini Multimeter Battery Tester Current Voltage AC DC Resistance Buzzer Transistor Voltmeter Ammeter with LCD Display](https://cdn.manomano.com/pim-media/images/medium/bac0f94e1604d6e880e1343efeeb91887b5c4c0b.jpg)
Compare with similar items
Product information
Description
MULTIPLE WAVEFORMS The JDS6600 series function generator can generate multiple waveforms such as sine, square, triangle, pulse, and random waves.
HIGH FREQUENCY The frequency range is up to 60 MHz, with adjustable duty cycle, sweep frequency, frequency signal, and counter function. The output signal, amplitude, and frequency can be displayed simultaneously.
EXCELLENT AMPLITUDE The series-designed generator has excellent amplitude and frequency characteristics, and the instrument's appearance is exquisite and beautiful. This instrument is widely used in factories, schools, research institutes, and laboratories.
WAVE TYPES Sine, Square, pulse (adjustable duty cycle, precise adjustment of pulse width and period), triangle wave, partial sine wave, CMOS wave, DC level (adjust DC amplitude by adjusting the offset), half wave, full wave, positive stair wave, anti-scale wave, noise wave, exponential rise, exponential fall, multi-sonic wave, symplectic pulse and Lorenz pulse and arbitrary waveforms.
WAVE TYPES Sine, Square, pulse (adjustable duty cycle, precise adjustment of pulse width and period), triangle wave, partial sine wave, CMOS wave, DC level (adjust DC amplitude by adjusting the offset), half wave, full wave, positive stair wave, anti-scale wave, noise wave, exponential rise, exponential fall, multi-sonic wave, symplectic pulse and Lorenz pulse and arbitrary waveforms.
alternative design generator kitvideosignalsignalsignaldigitalsignalfrequencymetergeneratorsignalfunctionddsubsignalmodulationdesignalgeneratorwaveformDigitalgeneratorcounter
Specifications: Model(Optional):JDS6600-15MJDS6600-30MJDS6600-40MJDS6600-50MJDS6600-60M Sine Wave Frequency Range 0~15MHz 0~30MHz 0~40MHz 0~50MHz 0~60MHz Square Wave Frequency Range 0~15MHz 0-25MHz 0-25MHz 0-25MHz 0-25MHz Trianglewave frequency range Pulsewave frequency range 0~6MHz 0~6MHz 0~6MHz 0~6MHz 0~6MHz TTL digital wave frequency range Arbitrary frequency range Pulse width setting range 100nS~4000S 50nS~4000S 40nS~4000S 30nS~4000S 25nS~4000S Square wave rise time 25ns 15ns 10ns 10ns
Package includes:
1xJDS6600Two-channel design generator 1xpower adapter 1xUSB cable 2xdesign connection cables 1xEnglish user manual 1xCD 1xBNC cable
Features
- BrandSNQ
- Weight1087 g
- Height1 cm
- Width21 cm
- Length26 cm
- MaterialPlastic
- Voltage24 V
- Laboratory Power Supply TypeAC
- ManoMano ReferenceME92565745
- MMID687862732272
- Product codeFD-20005
- EAN6032223848972
