Product information
Description

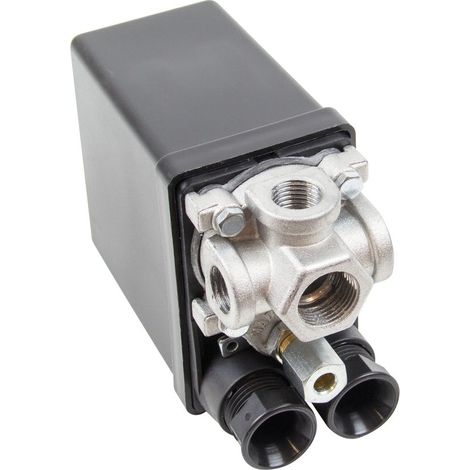

The SIP 3/8" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.
This easy-to-install switch offers 3x 1/4" BSP port and adjustable cut-off pressure.
Features:
- 3/8" 4-way pressure switch with 3x 1/4" BSP ports
- Easily adjustable cut-off pressure via built-in switch
- Designed to start and stop electric compressor motors
- Manufactured for long-lasting and reliable use
- Integrated bleed facility with 6mm pipe entry
Technical Data:
- Switch Type: Mignon 4-Way
- Voltage / Current: 230v / 20A
- Overload: N/A
- Inlet Connection Size: 3/8" BSP
- Inlet Connection Type Bottom Entry
- Side Port Size: 3x 1/4" BSP
- Switch Type: Pull
- Phase Type: 1-phase
- No. of Poles: 2 poles
Dimensions & Weight:
- Weight: 0.95 kg
SIP 3/8" 4-Way Pressure Switch
. Delivery is FREE to the UK Mainland and Northern Ireland.. 2#3Features
- BrandSIP
- Pcs per pack1
- Warranty1 year(s)
- MaterialMetal
- Number of phase(s)Single-phase
- Inlet size3/8"
- Compressor accessory typePressure switch
- ManoMano ReferenceME73056077
- MMID811046761358
- Product code5012713023165
- EAN5012713023165
