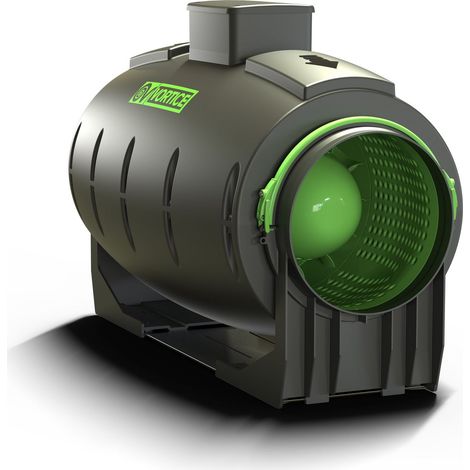

Sound-insulated inline fan Lineo 200 Quiet ES

(£732.59/pc)

Sold by creoven

Often purchased together

Product information

Description

Dimensions and technical details

220-240 V ~ 50/60 Hz
0-10 V interface
Housing colour: black
Housing material: polypropylene
Nominal size: 200 mm
Speed levels: 1
Wattage: 88 W
Current consumption: 0.78 A
Revolutions per minute: 2700
Airflow rate: 1145 m³/h
Sound pressure level Lp-3m: 38.6 dB(A)
Total pressure Pmax: 329.5 Pa
Max. temperature of transported air: +50°C
Protection class: IP45
Insulation class: II
Weight: 8.6 kg
Thermal overload protection
Includes mounting bracket
Optional speed controller sold separately
Mounting position: any position
Fan unit can be removed quickly for cleaning and maintenance
Classification of fire E-d2 according to European Standard EN 13501-1

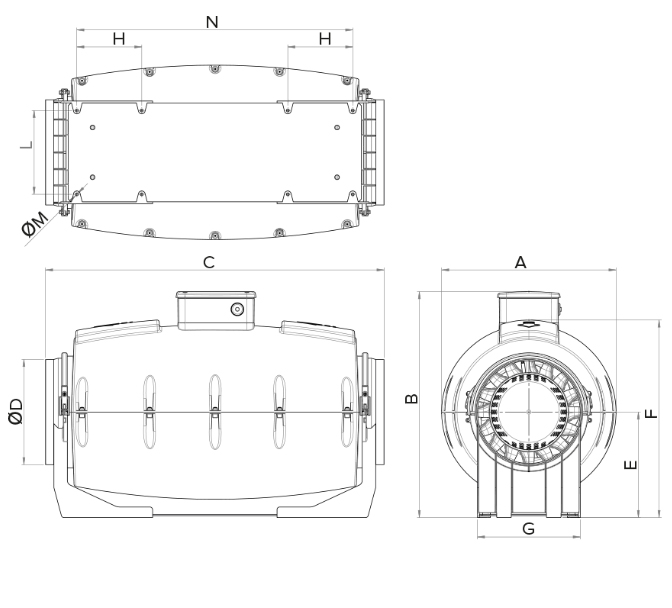

Lineo Quiet 200 ES dimensions

Dimensions in mm	A	B	C	Ø D	E	F	G	H	L	Ø M	N
Lineo 200 Quiet ES	322.5	417.6	625.5	194.5	195	363.5	190	120	155	5.5	510

Features

Brand
VORTICE
Colour
Black
Power
88 W
Power source
Corded
Max. flow rate
1145 m³/h
Intended use
Indoor
Diameter
190 cm
IP rating
IP45
Material
Polypropylene
Weight
8.6 kg
Noise level
38.6 dB
Fan type
Ceiling fan
ManoMano Reference
ME57582532
MMID
767032197347
Product code
17174
EAN
8010300171746
