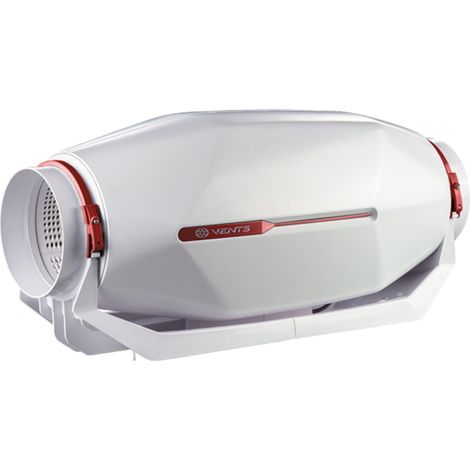

Sound-insulated inline fan Stream EC 160

Name: Sound-insulated inline fan Stream EC 160
Brand: VENTS
SKU: Stream EC 160
Availability: OutOfStock

Product out of stock

Product information

Description

General description

The Sound-insulated inline fan Stream EC 160 is designed for efficient air movement in various applications, including exhaust and supply air systems. Its robust construction and sound insulation features make it ideal for use in environments where noise reduction is a priority.

Technical specifications

Voltage: 220-240 V ~ 50/60 Hz

Housing colour: grey

Housing material: plastic

Nominal size: 160 mm

Speed levels: 1

Wattage: 55 W

Amperage: 0.49 A

Revolutions per minute: 3509

Airflow rate: 600 m³/h

Airflow rate: 167 l/s

Sound pressure level Lp-3m: 38 dB(A)

Temperature of transported air: -25 to +55°C

Sound / heat insulation: 50 mm mineral wool layer

Protection class: IPX4

Protection class motor: IP44

Dimensions: Length 606 mm, Height 273 mm, Width 253 mm

Weight: 5 kg

Compatibility and accessories

Includes mounting bracket

Installation

Can be mounted in any position

Features

Brand
VENTS
Colour
Grey
IP rating
IPX4
Material
Plastic
Air flow
600 m³/h
